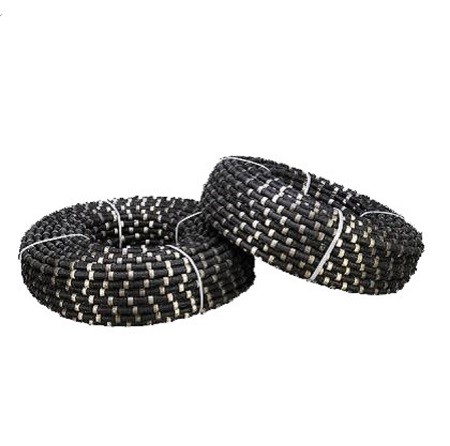

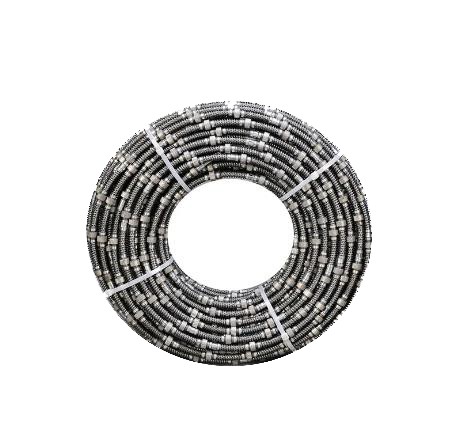

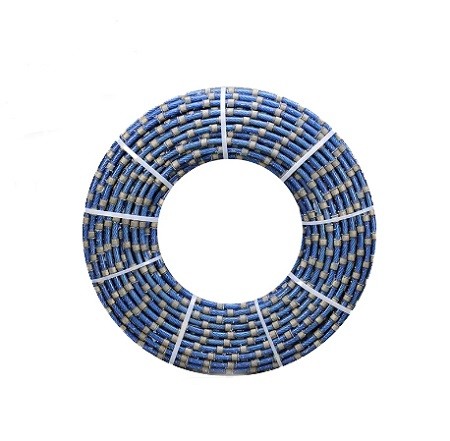

Diamond Wire Saw For Quarry

Fast cutting portable rubber spring 11.5mm diamond wire saw for quarry.

Features

1. Diamond Wire Saw is one of the most advanced tools for quarrying,block squaring & profiling and concrete cutting.

2. Compared with traditional way, quarrying by diamond (coated) wire has the advantages of high efficiency, less waste of material, safety, low noice, etc.

Technical Data of Diamond Wire Saw for Quarry

Specification	Coating	Beads	Cutting Material	Line Speed	Cutting Speed	Lifespan
Φ11.5mm Φ11.0mm	rubber rubber+spring	40/meter	hard granite	18-22m/s	2-4m2/h	7-9m2/m
			middle hard granite	22-25m/s	4-8m2/h	8-15m2/m
			soft granite	20-30m/s	8-12m2/h	16-22m2/m
Φ8.8mm Φ8.4mm	rubber plastic	40/meter 37/meter	hard granite	25-30m/s	7-10m2/h	7-10m2/h
			middle hard granite	25-30m/s	8-15m2/h	10-15m2/h
			soft granite	25-30m/s	10-20m2/h	15-20m2/h
Φ8.8mm Φ8.4mm	plastic	37/meter 33/meter	hard marble	30-40m/s	10-20m2/h	20-30m2/m
			middle hard marble	30-40m/s	15-25m2/h	25-35m2/m
			soft marble	30-40m/s	20-30m2/h	30-40m2/m
