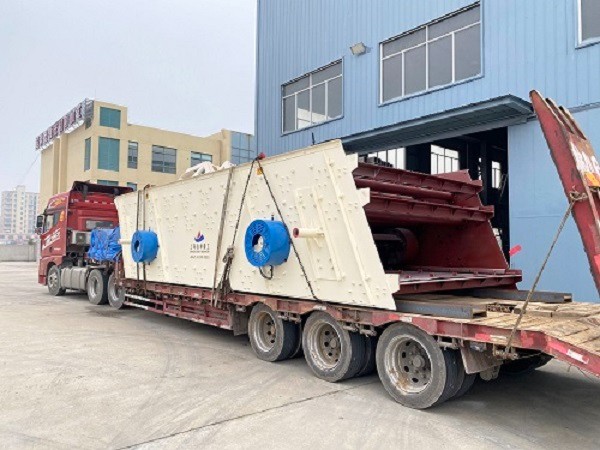

Vibrating Screen
Description:
The vibrating screen is equipped with adjustable amplitude, long drip line, multi-layered screening with distinct griller and high efficiency. It is widely used in quarrying industry and also can be used for coal dressing, building materials, electric power, chemical industries etc.
Materials:
River pebbles, granite, basalt, iron ore, limestone, calcite, quartz stone, coal, diabase etc.
Advantages
1. Ring groove rivet connection, advanced structure, durable, with tire coupling, flexible connection, smooth operation.
2. Low power consumption, low noise The use of sieve beams and sieve box with high strength bolts, simple structure, easy maintenance.
3. High utilization rate of screen, large unit area, not easy to block, but easy replacement of screen.
4. High-precision screening reach to 96% or above, large processing capacity etc.
Technical Data of Vibrating Screen
Model | Layer Number | Maximum Feed | Process Capacity (t/h) | Vibration Frequency (r/min) | Double Amplitude (mm) | Power (kw) |
| 2YA1230 | 2 | 200 | 10-90 | 800-970 | 8 | 7.5 |
| 3YA1230 | 3 | 200 | 30-90 | 800-970 | 8 | 7.5 |
| 2YA1548 | 2 | 200 | 50-190 | 970 | 8 | 15 |
| 3YA1548 | 3 | 200 | 50-200 | 970 | 8 | 15 |
| 4YA1548 | 4 | 200 | 50-200 | 970 | 8 | 18.5 |
| 2YK1860 | 2 | 400 | 100-350 | 970 | 8 | 18.5 |
| 3YK1860 | 3 | 400 | 100-350 | 970 | 8 | 22 |
| 4YK1860 | 4 | 400 | 100-350 | 970 | 8 | 30 |
| 2YK2160 | 2 | 400 | 150-450 | 850 | 8 | 30 |
| 3YK2160 | 3 | 400 | 150-450 | 850 | 8 | 30 |
| 4YK2160 | 4 | 400 | 150-450 | 850 | 8 | 37 |
| 2YK2460 | 2 | 400 | 200-650 | 850 | 8 | 37 |
| 3YK2460 | 3 | 400 | 200-650 | 850 | 8 | 37 |
| 4YK2460 | 4 | 400 | 200-650 | 850 | 8 | 45 |
| 2YK3070 | 2 | 400 | 300-950 | 850 | 8 | 44 |
| 3YK3070 | 3 | 400 | 300-950 | 850 | 8 | 60 |
