Wire Mesh

Materials:
1. Stainless steel wire(304, 304L , 316 ,316L)
2. Black iron wire, carbon steel wire, 65Mn steel wire.
3. Galvanized iron wire.

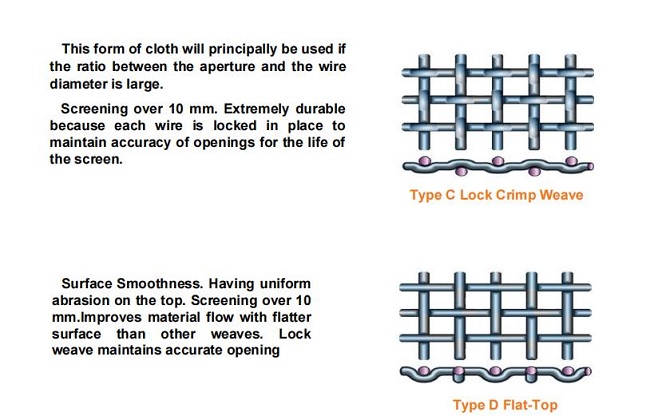

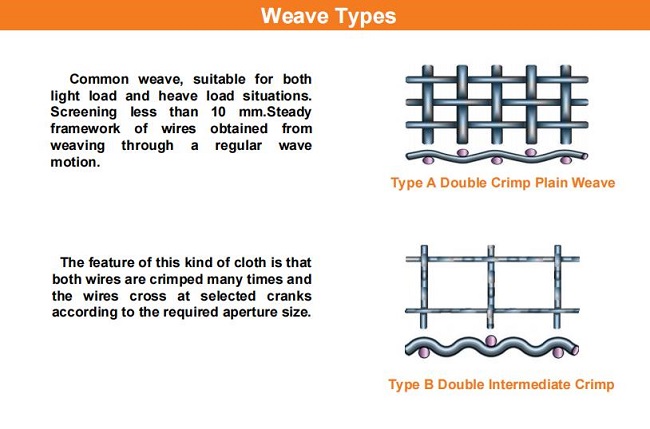

Weaving: weave after crimp, plain crimp, single intermediate crimp, double intermediate crimp, lock crimp mesh, flat top crimp.

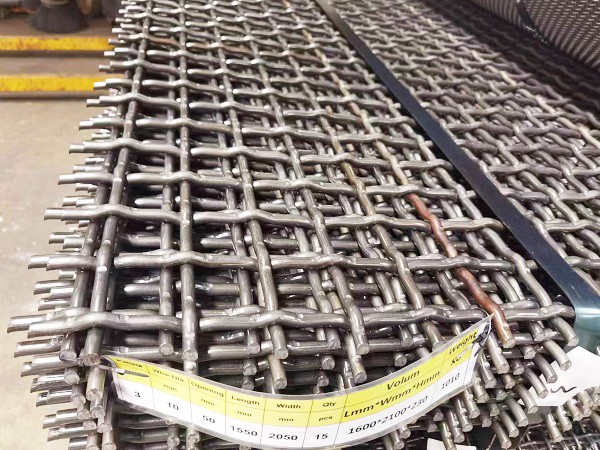

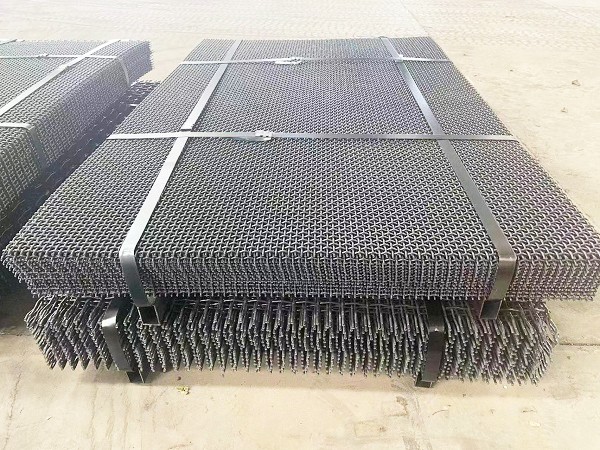

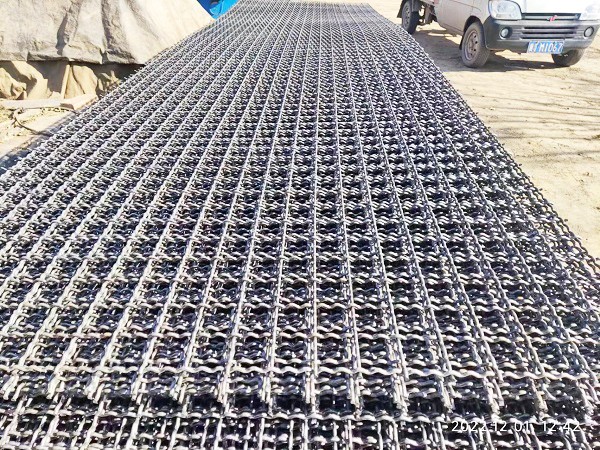

Rock crusher sieving mesh are specially manufactured for extremely rugged operating conditions in scalping, sizing or processing heavy abrasive materials such as ores, crushed stones, sand, gravel, metallic and non metallic minerals, coal slag etc.

We have screens in different materials, wire diameters, mesh opening, dimensions and weaving patterns that can be chosen as per the specific application and nature of raw materials. Extensively used for sizing, screening, shifting, grading, separating, scalping and washing, these screens have high tensile strength, excellent adaptability to work under adverse conditions and high resistance against corrosion and chemicals.

European Standard:

ISO 4783; ISO-14315; EN-10088-3

American Standard:

ASTM E2016-11

Tolerance Control:

1. Wire Diameter: +/-0.03mm

2. Mesh Size: +/-3%

3. Spur Size: <1/2 mesh

4. Length, Width: 0/3mm

5. Diagonal difference: 0.3%
