DTH Drill Rig

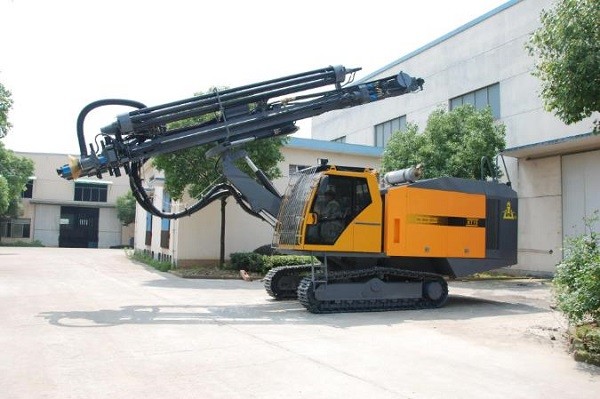

KT15 high pressure integrated drilling rig is specially designed as a high efficiency mining machine for the large scale open-pit mines.The walking, propulsion, rotation, and angle adjustment are all driven by a powerful hydraulic system. The high air pressure screw rod and high pressure pneumatic drill hammer are both available, so the drilling efficiency is quite desirable.To reduce the pollution to the environment, a dry type dust collector is mounted.

Technical Data of KT15 DTH Drill Rig

Model NoKT15
Rock Hardnessf=6-20
Hole Diameter135-190mm
Economic Drill Depth35m(automatically connecting rods)
Walking Speed3.0km/h
Grade Ability25°
Ground Clearance430mm
Diesel MotorCummins QSZ13-C400
Machine Power298KW, 2200r/min
Screw Compressor Air Delivery22m³/min
Exhaust Pressure25bar
System Working Pressure20bar
Overall Dimension(L*W*H)11500×2716×3540(mm)
Weight23000kgs
Rotating Speed0-118r/min
Rotation Torque4100N·m
Lifting Power65000N
Push Typemotor chain
Push Length(mm)5000mm
Carriage Pitch Angle125°
Carriage Swing Angleright 97°, left 33°
Drill Arm Swing Angleright 42°, left 15°
Leveling Angle Frameup 10°, down 10°
Compensation Length(mm)1800mm
Drill HammerHD55A
Drill PipeΦ89×5000/Φ102×5000
Connect Stem Implement Ability6+1
Catching Dust Waydry (hydraulic drive whirlwind layer streaming)
Connect Drilling Rodautomatically connecting and discharging
Since Artery Card Wayelectro-hydraulic vacancy prevent card
Pipe Lubrication Methodautomatic spray oil lubrication
Drill Pipe Thread Protectionequipped with floating street protection pipe threads
Drill Hole Angle Indicatortwo-dimension electron angle indicator
Drill Hole Depth Indicatordrill angle and Electron hole depth indicator
Safe Cabmeet the requirements of FOPS & ROPS
Indoor Noisebelow 85dB(A)
Seatadjustable
Air-conditioningstandard temperature
Entertainmentradio+Mp3
