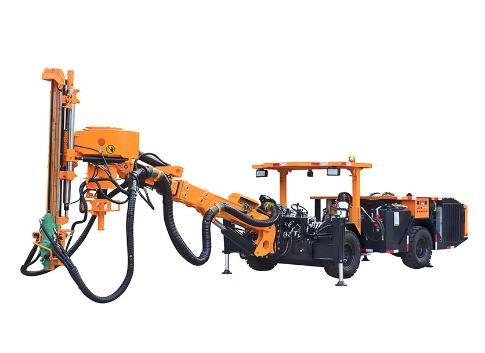

Hydraulic-controlled Bolting Rig

The KM211 hydraulic rock bolting rig is specially designed for the construction of rock bolts in the pipe seam of low tunnels and it is capable of passing through tunnels 2.5 meters wide and 1.7 meters high. It is qualified for anchoring operations in tunnels whose section extends to a width of over 2.5 meters and a height of over 2.8 meters.

Application and Features

1. Complete functions

The advancing beam at two stations is available and it is equipped with a magazine with a storage capacity of 10 bolting rods, along with an optional protective netting module. It is capable of performing the following tasks: drilling, netting and installation of rock bolting rods.

2. High safety

Operators are protected by the ceiling, far away from the danger area.

3. High efficiency

The stepped piston is used for the high-frequency rock drill and this can improve the transmission efficiency of impact wave, increasing drilling speed and reducing the consumption of drilling tools.

4. Good view for the operator

The articulated chassis of four-wheel drive ensures the flexible, quick and safe driving in narrow tunnels.

5. Considerable space

Considerable space and automatic functions enable the driver to concentrate on drilling in a safe, fast and accurate manner.

6. Easy maintenance

All the relevant parts are protected from the outside environment and are easy to maintain.

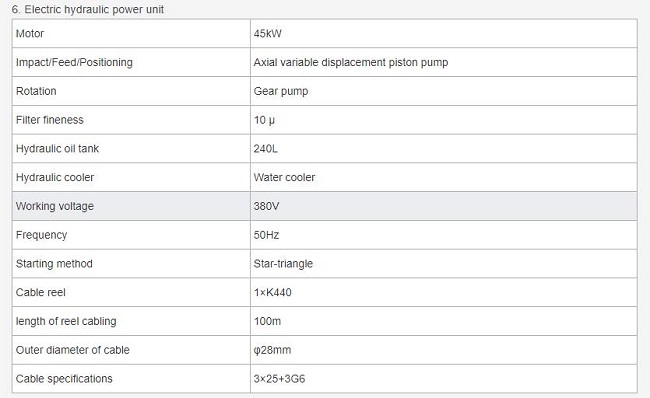

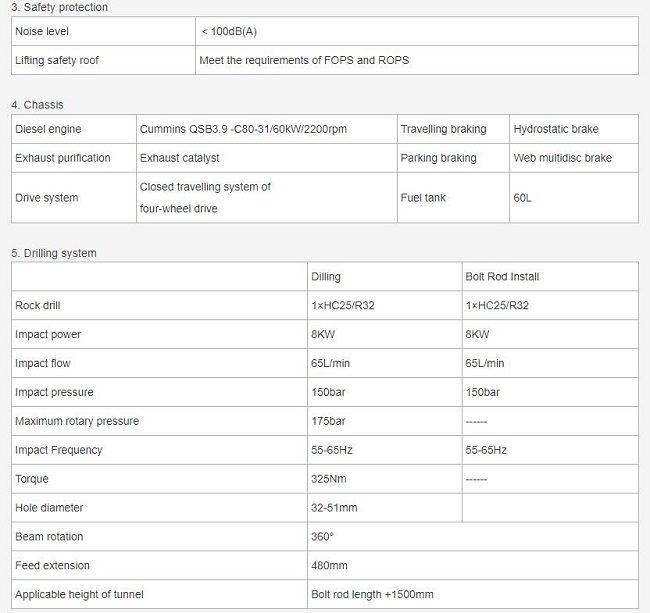

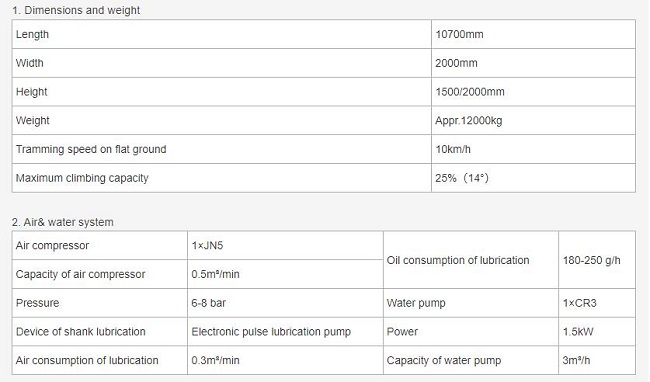

Technical Data of KM211 Hydraulic-controlled Bolting Rig
