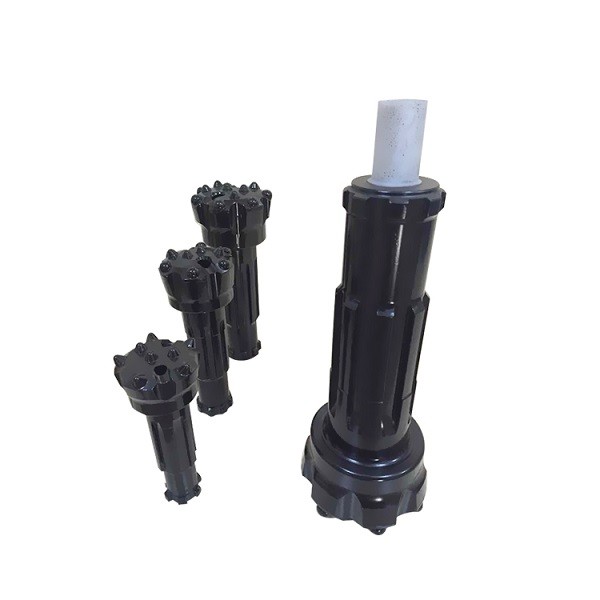

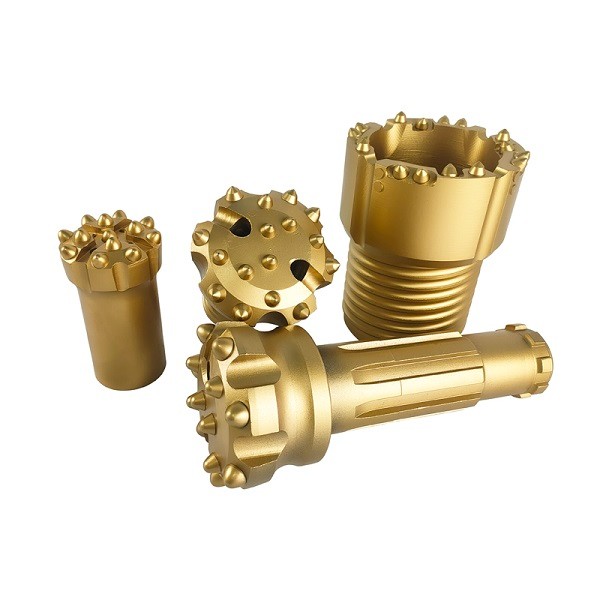

DTH bits (also called DTH bits or spline connection bit) is connected through the drill bit spline and impactor, for impact orientation and rotation of a transmission, braze the broken rock. Mainly used in large mines (open pit and underground mining), open architecture, and a large stone mining engineering construction conditions.
Technical Data of GSD Series DTH Drill Bit(High Air Pressure)
Diameter | No x Buttons Diameter(mm) | Button Angle | Air Holes | Weight(kg) | ||
mm | inch | Gauge Buttons | Front Buttons | |||
Drill Bits for GSD4 Hammers | ||||||
105 | 4 1/8 | 7x16 | 6x14 | 38 | 2 | 9.0 |
110 | 4 5/16 | 7x16 | 6x14 | 38 | 2 | 9.5 |
115 | 4 1/2 | 7x16 | 6x14 | 38 | 2 | 9.8 |
120 | 4 3/4 | 8x16 | 8x13 | 38 | 2 | 11.5 |
125 | 4 15/16 | 8x16 | 10x13 | 38 | 2 | 12.3 |
130 | 5 1/8 | 8x16 | 8x14 | 38 | 2 | 13.0 |
Drill Bits for GSD5 Hammers | ||||||
138 | 5 1/2 | 7x18 | 7x15 | 38 | 2 | 15.6 |
146 | 5 3/4 | 7x18 | 7x15 | 38 | 2 | 16.5 |
152 | 6 | 8x16 | 8x15 | 38 | 2 | 17.0 |
165 | 6 1/2 | 8x18 | 8x16 | 38 | 2 | 18.0 |
178 | 7 | 8x18 | 10x16 | 38 | 2 | 21.0 |
Drill Bits for GSD6 Hammers | ||||||
152 | 6 | 8x18 | 4x16 +4x14 | 38 | 2 | 26.0 |
165 | 6 1/2 | 8x18 | 8x16 | 38 | 2 | 27.0 |
178 | 7 | 8x18 | 10x16 | 38 | 2 | 29.0 |
185 | 7 1/4 | 8x18 | 10x16 | 38 | 2 | 31.0 |
194 | 7 1/2 | 10x18 | 13x16 | 38 | 2 | 32.0 |
203 | 8 | 10x18 | 8x18 +6x16 | 38 | 2 | 34.0 |
216 | 8 1/2 | 10x18 | 8x18 +6x16 | 38 | 2 | 44.0 |
Drill Bits for GSD8 Hammers | ||||||
194 | 7 1/2 | 10x18 | 13x16 | 38 | 2 | 35.0 |
203 | 8 | 10x18 | 8x18 +6x16 | 38 | 2 | 37.0 |
216 | 8 1/2 | 10x18 | 8x18 +6x16 | 38 | 2 | 48.0 |
235 | 9 1/4 | 12x18 | 30x16 | 38 | 2 | 60.0 |
254 | 10 | 12x18 | 12x18 +8x16 | 38 | 2 | 70.0 |
275 | 11 | 12x18 | 20x18 +9x16 | 38 | 2 | 85.0 |
305 | 12 | 12x18 | 20x18 +9x16 | 38 | 2 | 94.0 |
Drill Bits for GSD10 Hammers | ||||||
254 | 10 | 12x18 | 12x18 +8x16 | 38 | 2 | 108.0 |
275 | 11 | 12x18 | 20x18 +9x16 | 38 | 2 | 115.0 |
305 | 12 | 12x18 | 20x18 +15x16 | 38 | 4 | 125.0 |
311 | 12 1/4 | 12x18 | 20x18 +16x16 | 38 | 4 | 130.0 |
318 | 12 1/2 | 12x18 | 20x18 +18x16 | 38 | 4 | 142.0 |
330 | 13 | 16x18 | 20x18 +22x16 | 38 | 4 | 155.0 |
Drill Bits for GSD12 Hammers | ||||||
305 | 12 | 12x18 | 20x18 +15x16 | 38 | 4 | 156.0 |
311 | 12 1/4 | 12x18 | 20x18 +16x16 | 38 | 4 | 161.0 |
318 | 12 1/2 | 12x18 | 20x18 +18x16 | 38 | 4 | 172.0 |
330 | 13 | 16x18 | 20x18 +22x16 | 38 | 4 | 185.0 |
356 | 14 | 16x18 | 20x18 +26x16 | 38 | 4 | 191.0 |
381 | 15 | 16x18 | 20x18 +28x16 | 38 | 4 | 200.0 |
