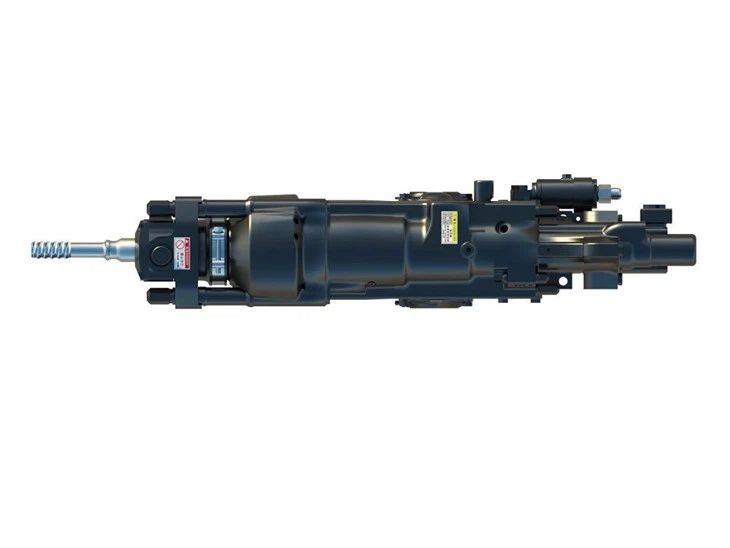

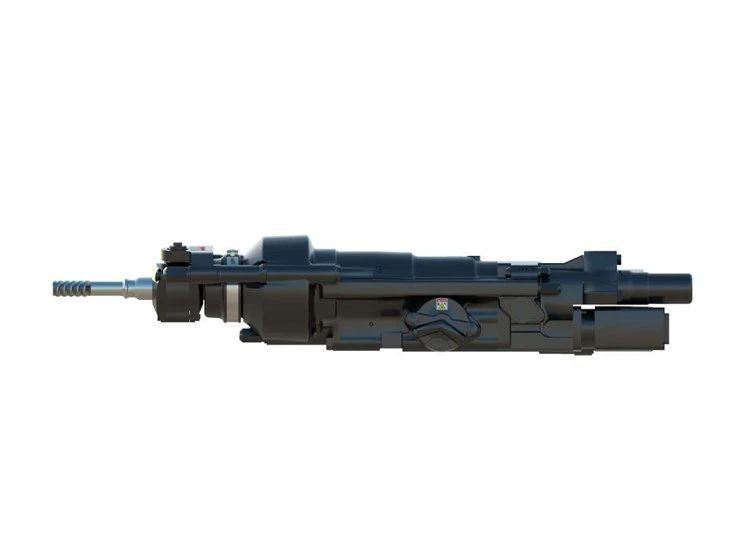

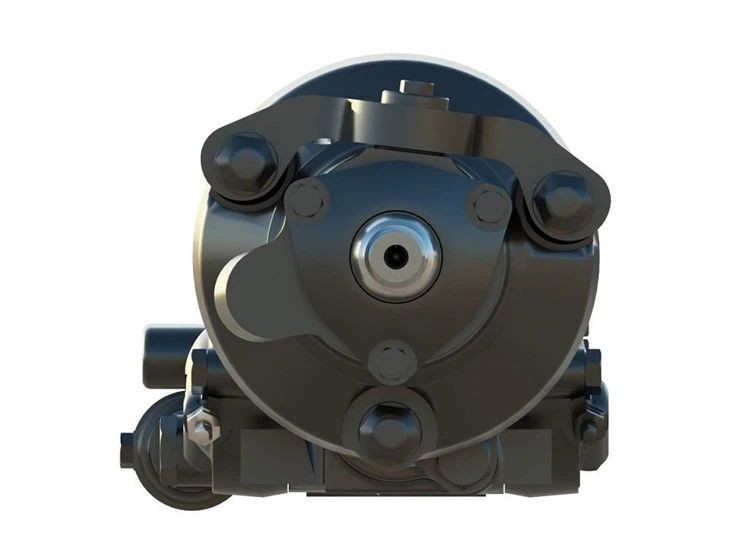

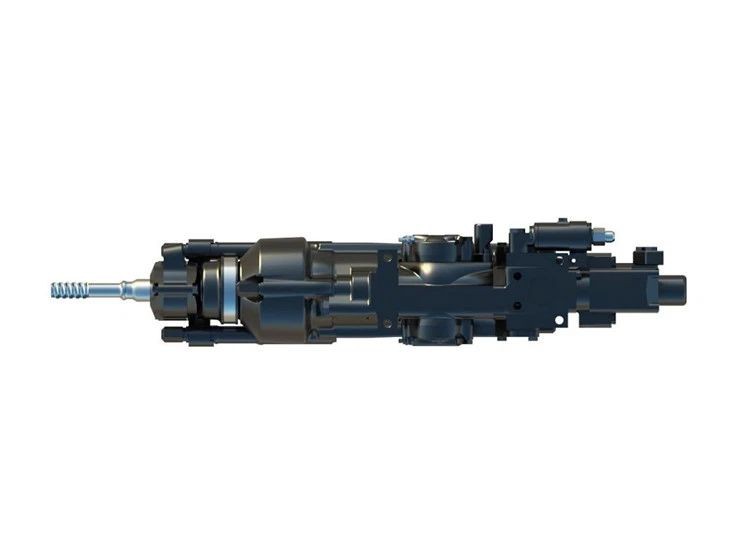

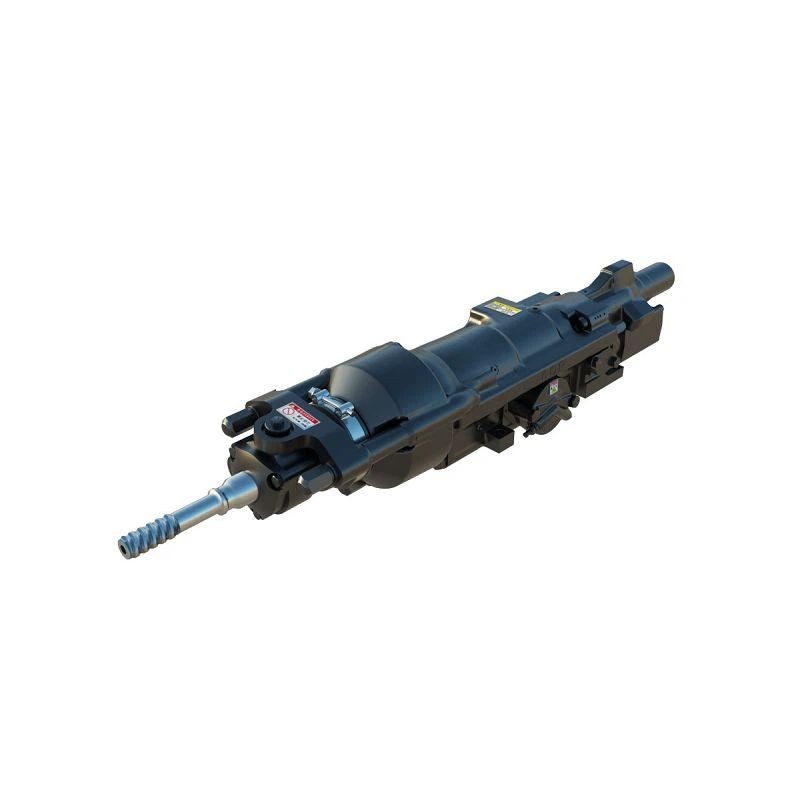

1838MUX+ Hydraulic Rock Drill

Compared with the traditional pneumatic rock drill, hydraulic rock drill has the characteristics of less power consumption, high energy utilization rate, high drilling speed, easy operation and strong adaptability.
Drilling hole diameter :64-89mm
Rated power :18kw
Impact frequency :60Hz
Application conditions: mining, foundation engineering, water conservancy engineering.

Product Introduction

1838MUX+ A highly efficient hydraulic double damping system that utilizes floating adapter technology for high productivity and good steel drilling economy. The system is equipped with powerful infinitely variable and reversible rotary motors that ensure high torque and excellent speed control. In addition, productivity can be further increased and downtime reduced through individual lubrication of the front head and drive as well as pressurized, lubricated mating surfaces and side bolts. These improvements make the system highly efficient and reliable in industrial applications, enabling high productivity and reduced downtime, increasing overall economic efficiency.

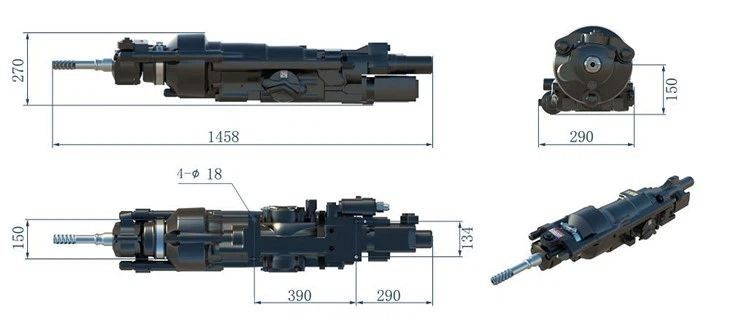

Technical Data of 1838MUX+ Hydraulic Rock Drill

Impact power(max

18Kw
Impact frequency60Hz
Impact pressure(max)

220bar

Impact flow rate75–92L/min
Slewing torque(max)1550Nm
Slewing speed(max)0-215rpm
Rotation pressure(max)210bar
Rotary flow rate75L/min
Drilling diameter range64-89mm
Suitable for drilling tailsT38/T45
Weight225kgs
