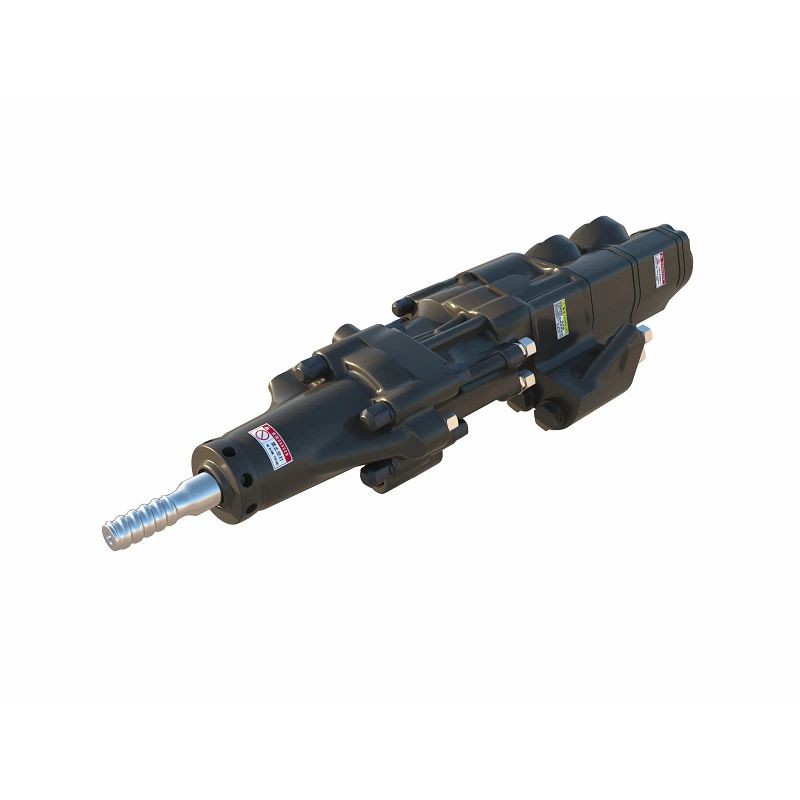

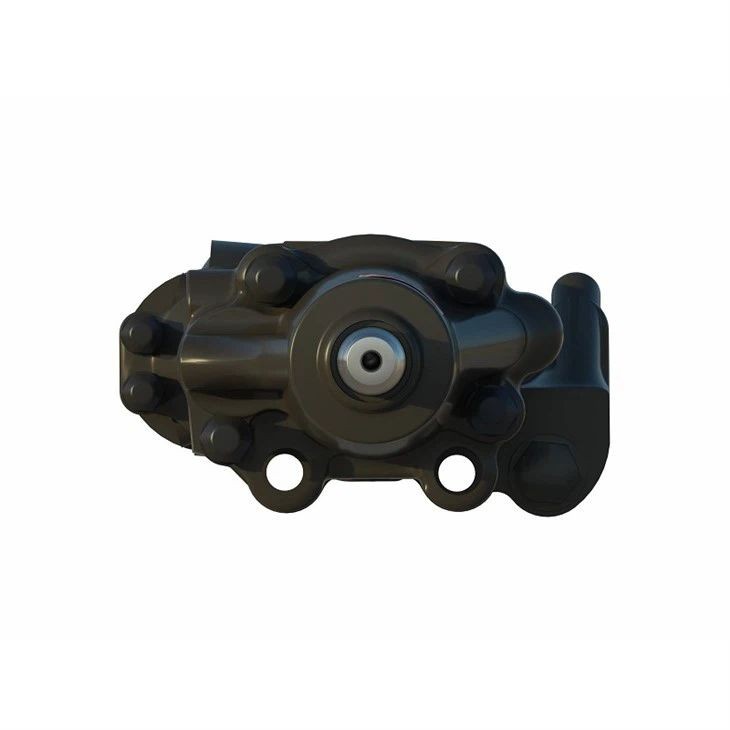

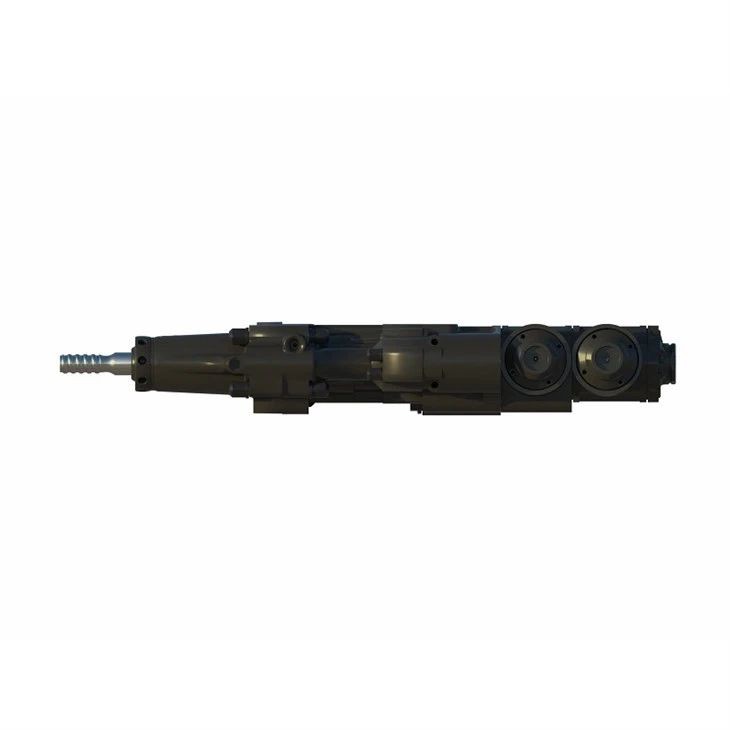

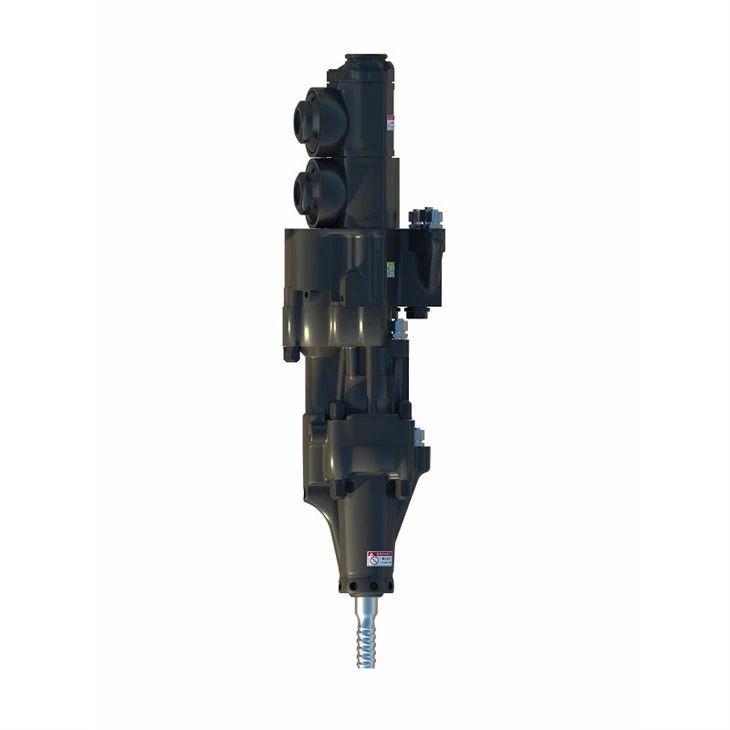

HC 109 Hydraulic Rock Drill

Compared with the traditional pneumatic rock drill, hydraulic rock drill has the characteristics of less power consumption, high energy utilization rate, high drilling speed, easy operation and strong adaptability.
Drilling hole diameter :43-115mm
Rated power :19kw
Impact frequency :48-62Hz
Application conditions: mining, foundation engineering, water conservancy engineering.

Product Introduction

1. Piston design accommodates ground type and/or hydraulic fluid supply.

2. Select from a wide range of front head materials and shapes.

3. Wide range of rotational torque and speed settings.

4. Mechanical or hydraulic reverse shock.

5. Wide range of applications: from long holes in quarries to underground boring, from soft rock drilling to hard rock drilling.

6. Stainless steel front head for corrosive environments.

7. Has a reputation for high reliability and long service life.

8. 35 years of continuous research, development and improvement.

Technical Data of HC 109 Hydraulic Rock Drill

Impact power(max	19Kw
Impact frequency	48-62Hz
Impact pressure(max)	135–155bar
Impact flow rate	120–135L/min
Slewing torque(max)	435Nm
Slewing speed(max)	145-225rpm
Rotation pressure(max)	140bar
Rotary flow rate	60L/min
Drilling diameter range	43-115mm
Suitable for drilling tails	T38/T45/T51
Weight	170kgs
