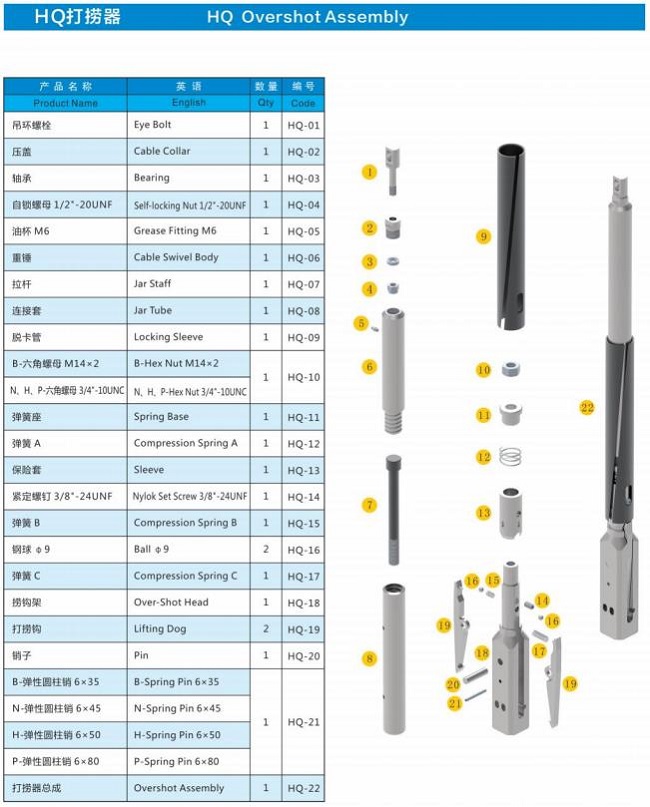

HQ Core Barrel & Overshot Assembly

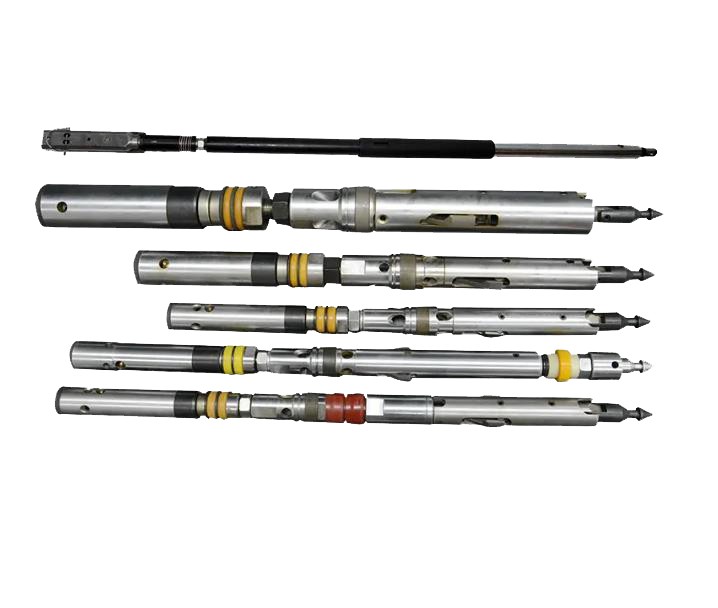

SWIT offers a complete line of single & double and triple tube core barrels, which will provide superior performance and obtain the full recovery of the sample in any application of diamond core drilling.

Using a wireline system, core is recovered quickly by retrieving the inner tube directly through the drill string. The rods remain in the hole until the bit needs to be replaced. This has big cost advantages when drilling deep holes for mineral exploration.

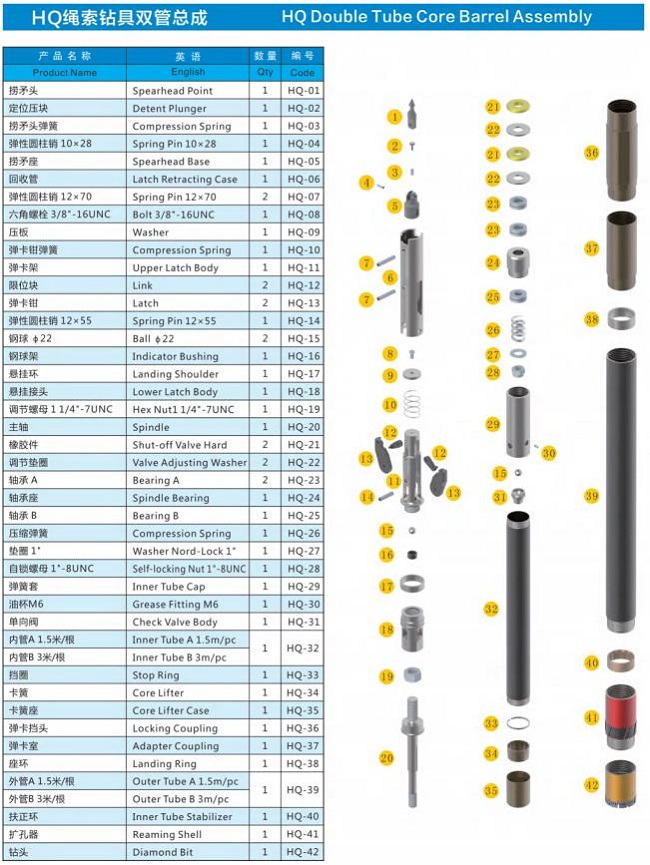

Standard Wireline Double tube Core Barrels are ideal for use in most of the drilling conditions and are available for application in standard hole sizes (BWL, NWL, HWL and PWL).

Wireline Triple tube Core Barrels enable integral core recovery when drilling coal, clay bearing or highly fractured formations. The split tube retains the core sample in its received state for easier loading into sample trays or for storage and subsequent presentation to the geologist. The Triple tube Core Barrels is available in N, H and P sizes.

Technical Data of NQ Core Barrel & Overshot Assembly
