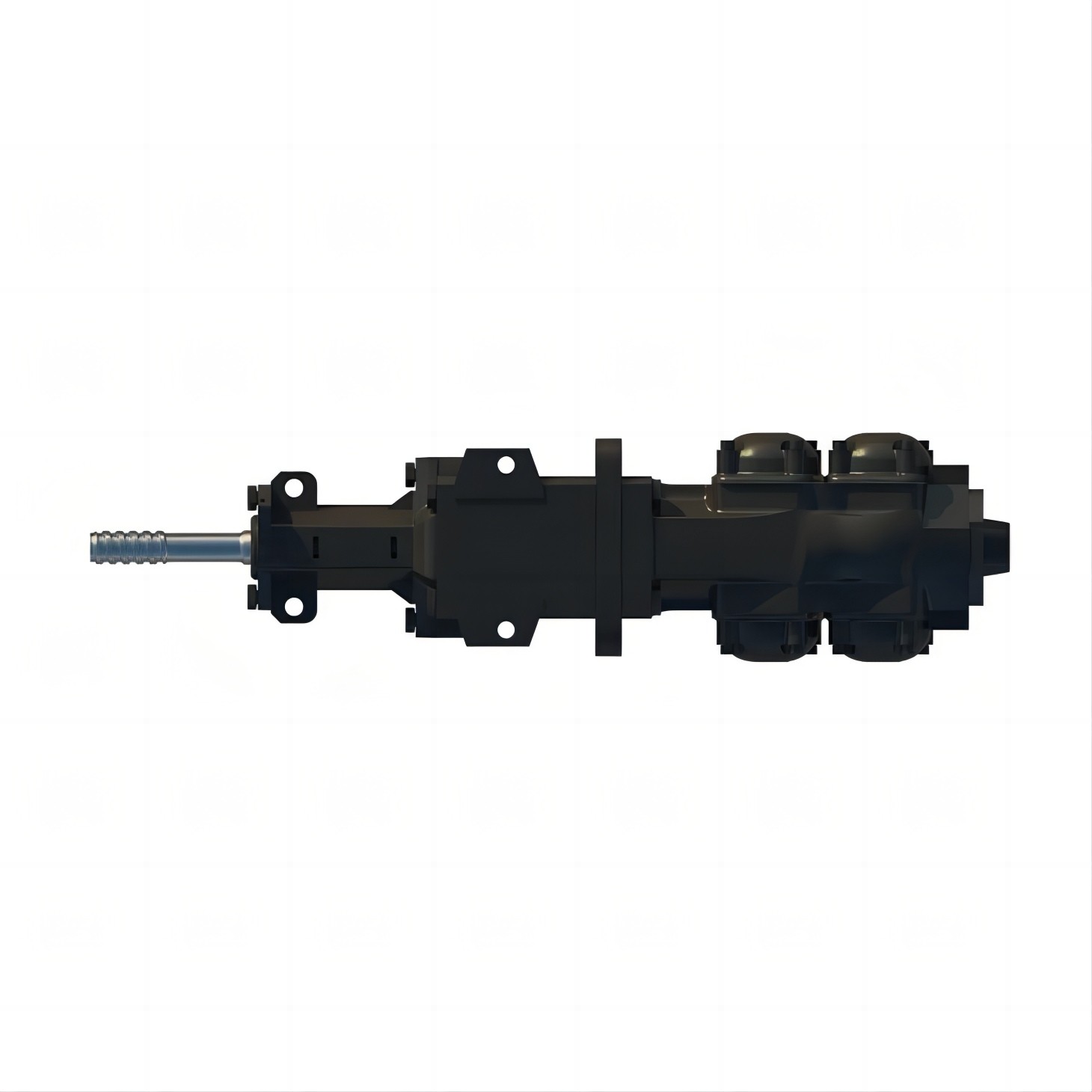

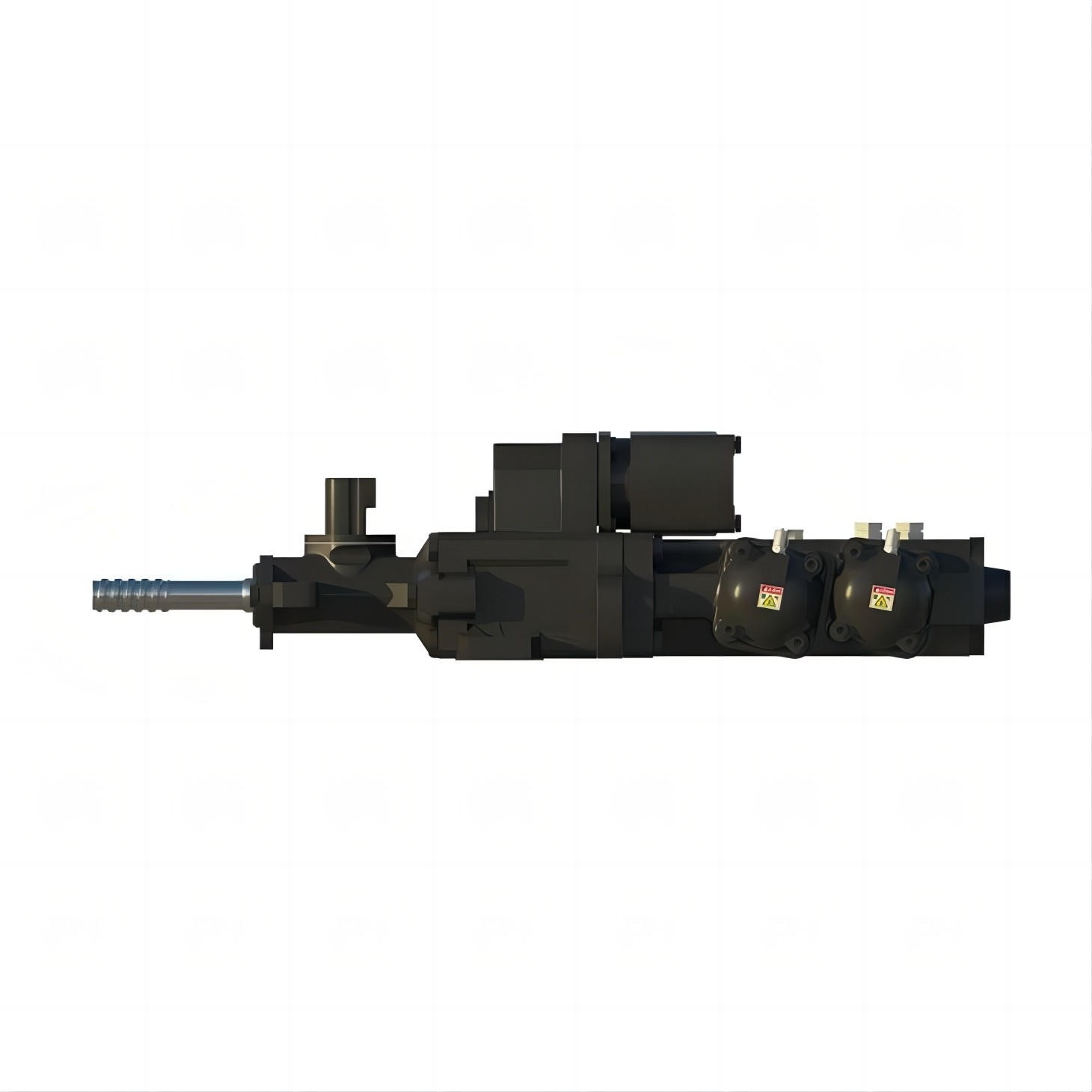

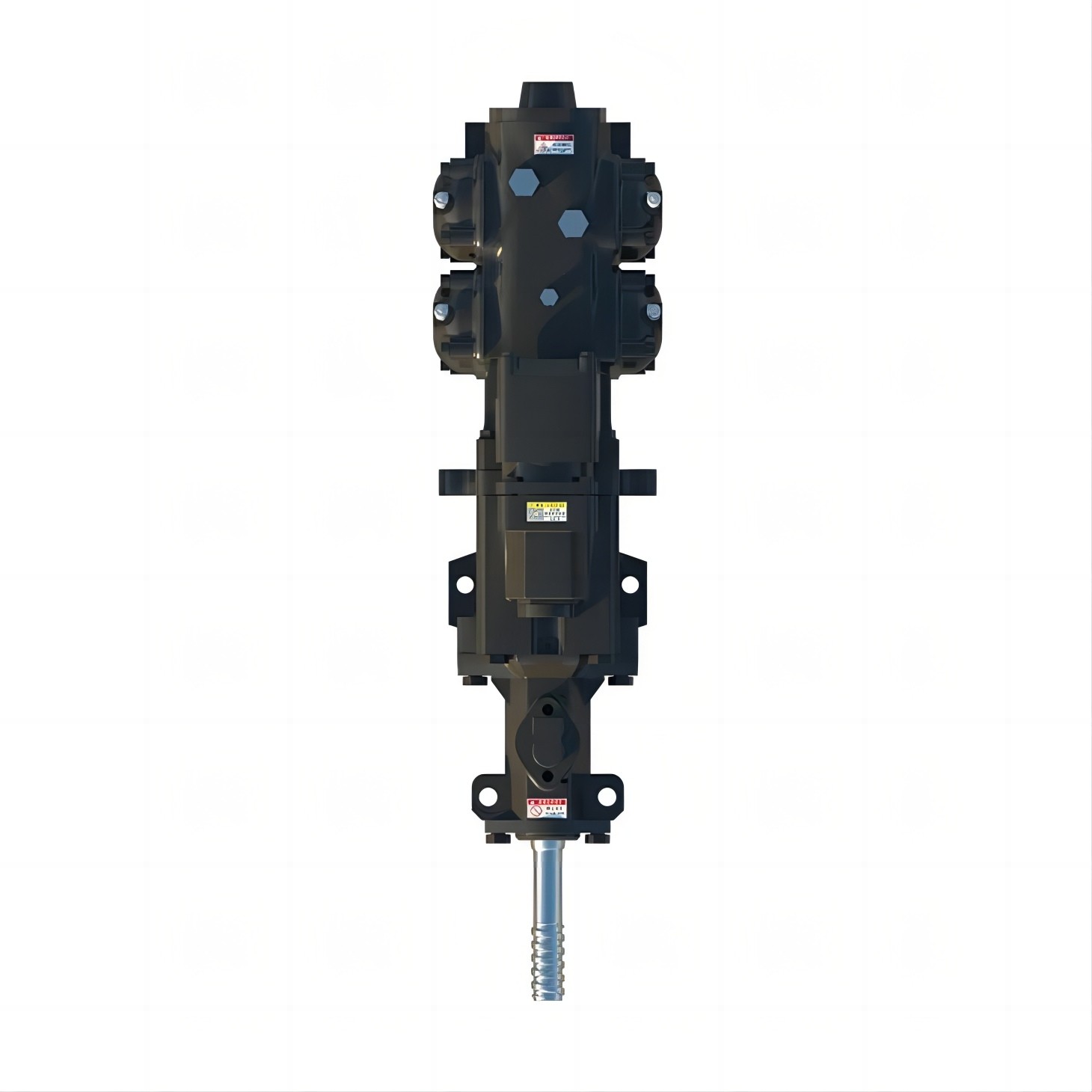

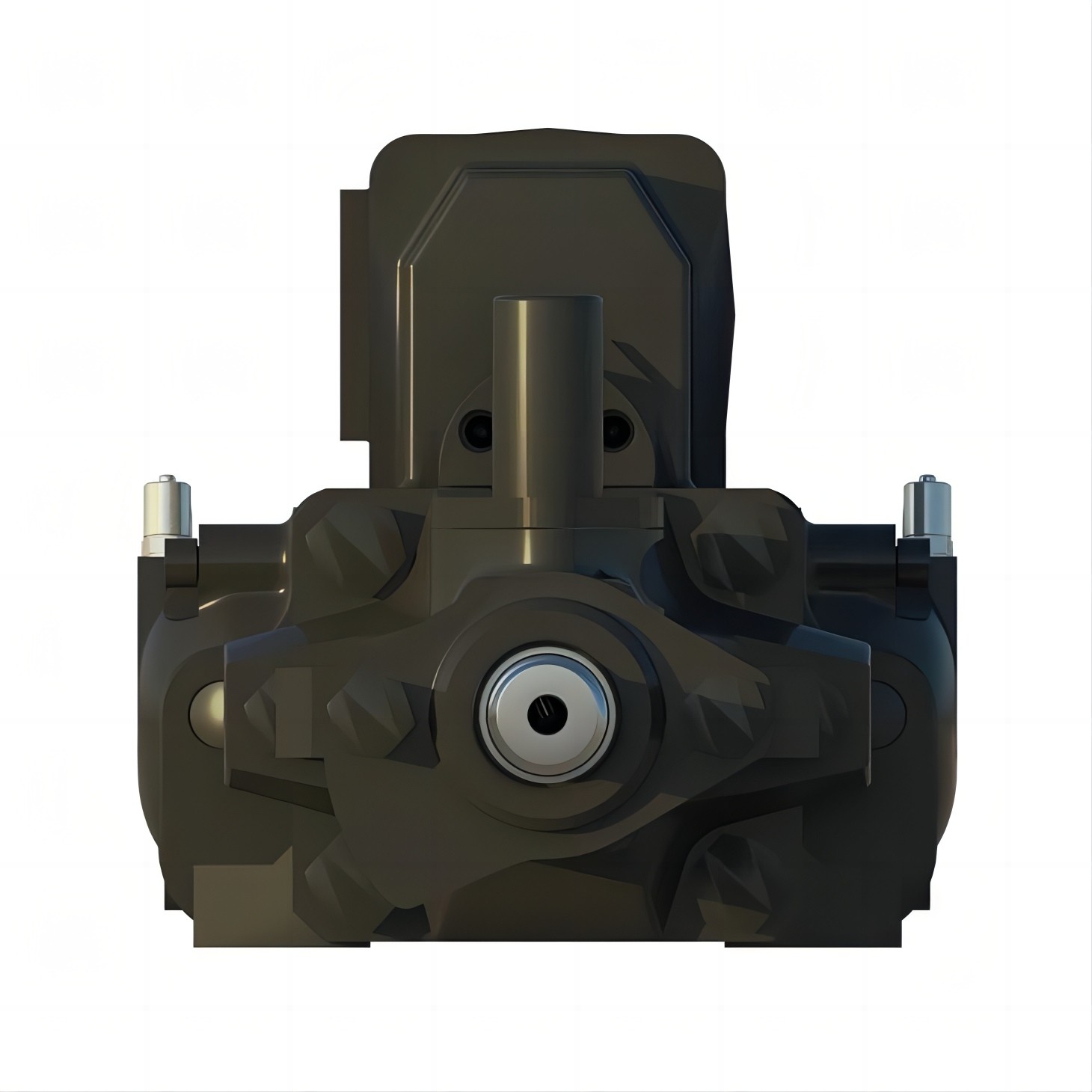

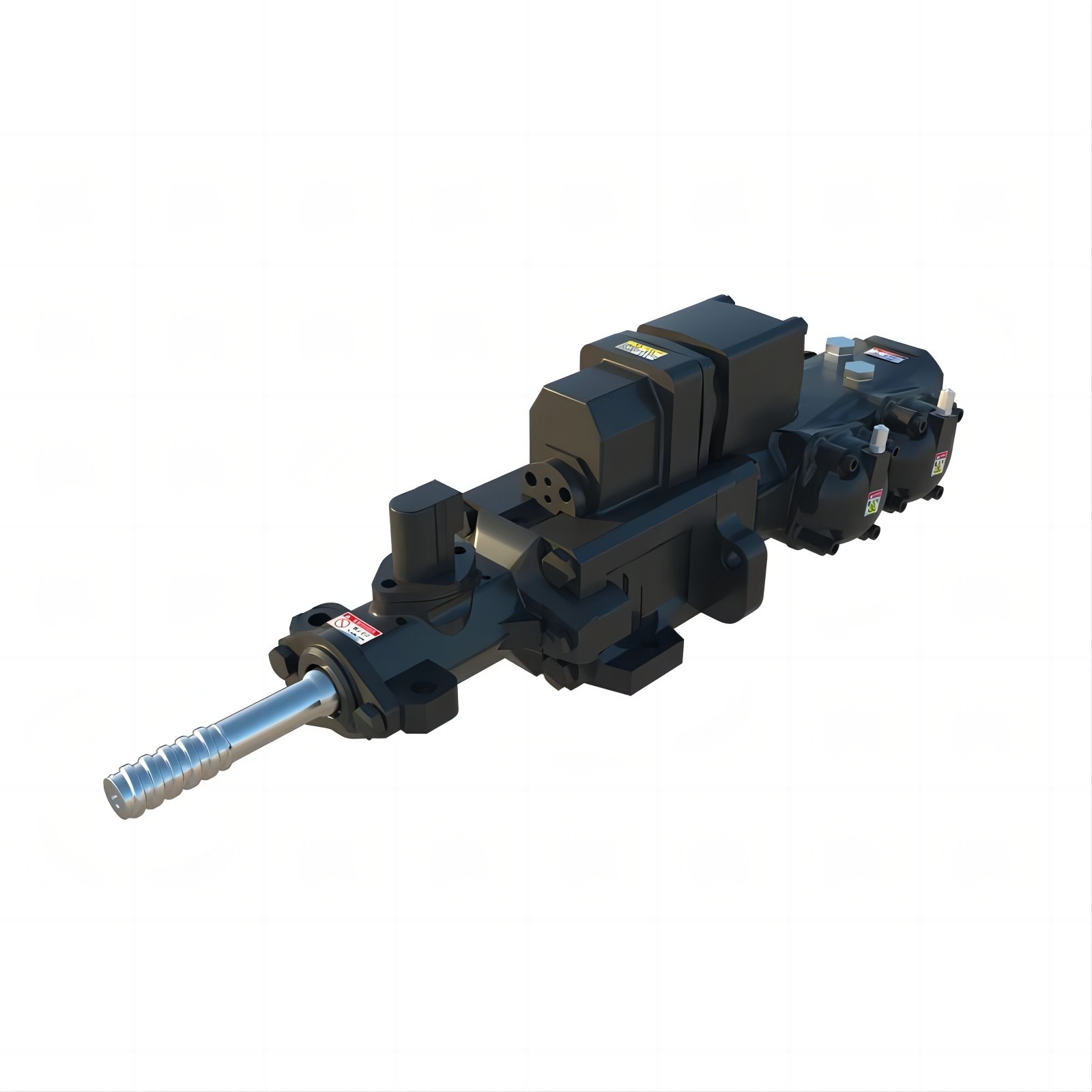

Hydraulic Drifter HL 1000

Compared with the traditional pneumatic rock drill, hydraulic rock drill has the characteristics of less power consumption, high energy utilization rate, high drilling speed, easy operation and strong adaptability.
Drilling hole diameter:89-127mm
Rated power :25kw
Impact frequency :33-38Hz
Application conditions: mining, foundation engineering, water conservancy engineering.

Product Introduction

Hydraulic drifter HL 1000 is a hydraulic top hammer rock drill designed for surface top hammer drilling rigs. It is capable of drilling 089 to 127 mm holes to a depth of 29 meters. The optimum hole spacing is 89 to 102 mm when using T51MF rods

The HL1000 is a heavy duty hydraulic rock drill designed for medium diameter deep hole drilling. The construction of the rock drill is based on three main modules bolted together with short side bolts, which ensures a minimum number of joints and a large contact surface. The impact module is designed to be simple and reliable, consisting of only two moving parts - the piston and the distributor sleeve around the piston - all guided by a single pilot cylinder, ensuring optimum alignment of the parts.

The HL1000 is equipped with a bit stabilizer designed to keep the rod adapter in an optimal position relative to the piston, which ensures good rock/bit contact and energy transfer, high mechanical drilling speeds and rock tool life.

Technical Data of Hydraulic Drifter HL 1000

Impact power(max	25Kw
Impact frequency	33-38Hz
Impact pressure(max)	90-160bar
Impact flow rate	85-113L/min
Slewing torque(max)	2005Nm
Slewing speed(max)	0-100rpm
Rotation pressure(max)	160bar
Rotary flow rate	300-400L/min
Drilling diameter range	89-127mm
Suitable for drilling tails	T38/T45/T51
Weight	470kgs
