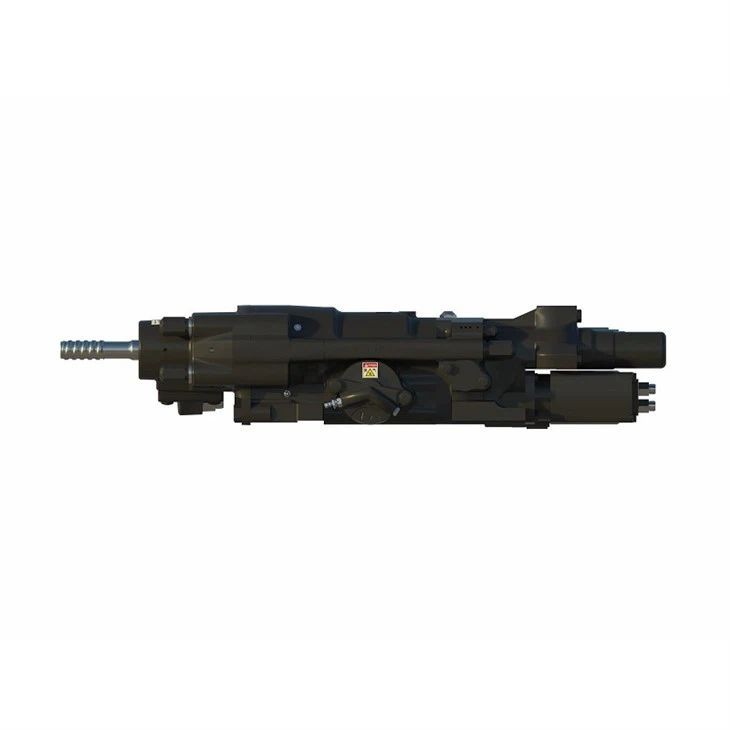

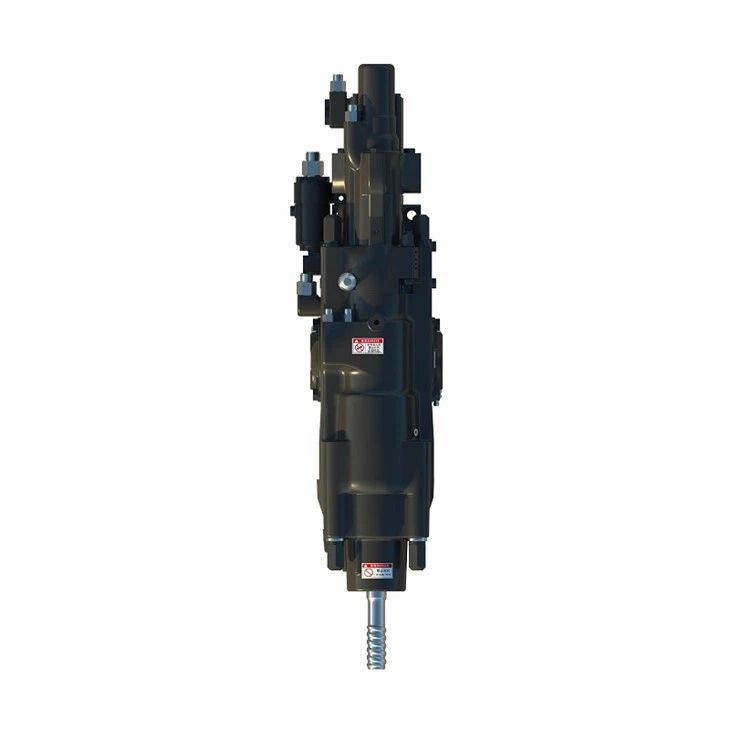

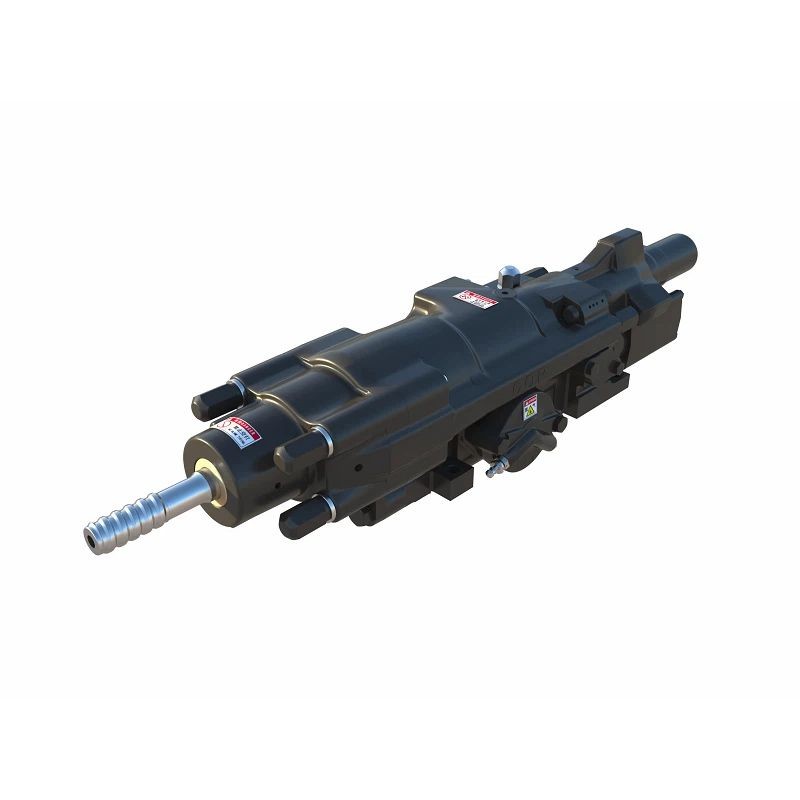

COP 1838 HD+ Hydraulic Rock Drill

Compared with the traditional pneumatic rock drill, hydraulic rock drill has the characteristics of less power consumption, high energy utilization rate, high drilling speed, easy operation and strong adaptability.
Drilling hole diameter :38-64mm
Rated power :18kw
Impact frequency :60Hz
Application conditions: mining, foundation engineering, water conservancy engineering.

Product Introduction

High torque output for efficient drilling and minimizing the risk of clogging.

Reliability with optimized rock contact while protecting the rock drill from harmful energy backlash.

Sustainability by ensuring efficient removal of cuttings for increased bit life.

Technical Data of COP 1838 HD+ Hydraulic Rock Drill

Impact power(max	18Kw
Impact frequency	60Hz
Impact pressure(max)	230bar
Impact flow rate	75–92L/min
Slewing torque(max)	1000Nm
Slewing speed(max)	0-340rpm
Rotation pressure(max)	210bar
Rotary flow rate	75L/min
Drilling diameter range	38-64mm
Suitable for drilling tails	R32/R38/T38
Weight	175kgs
