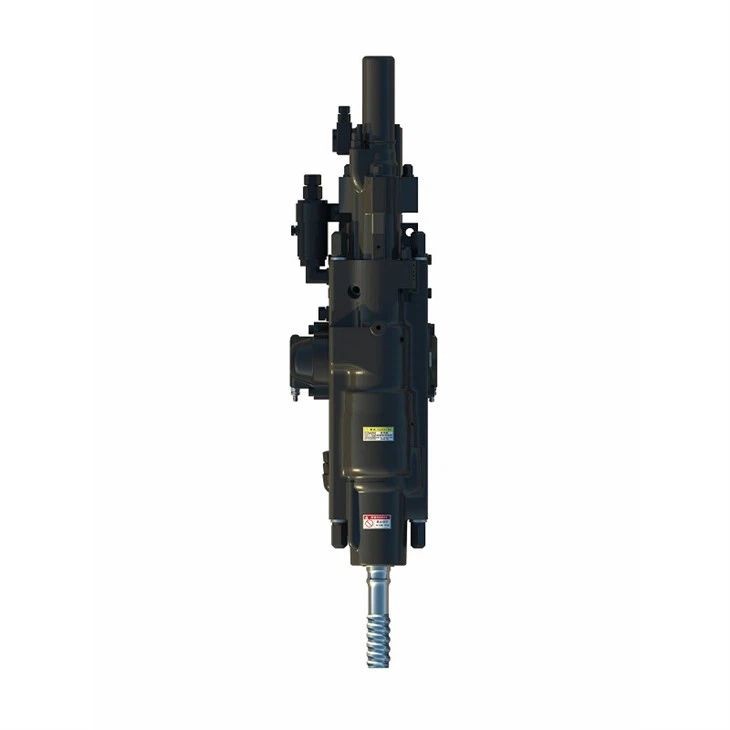

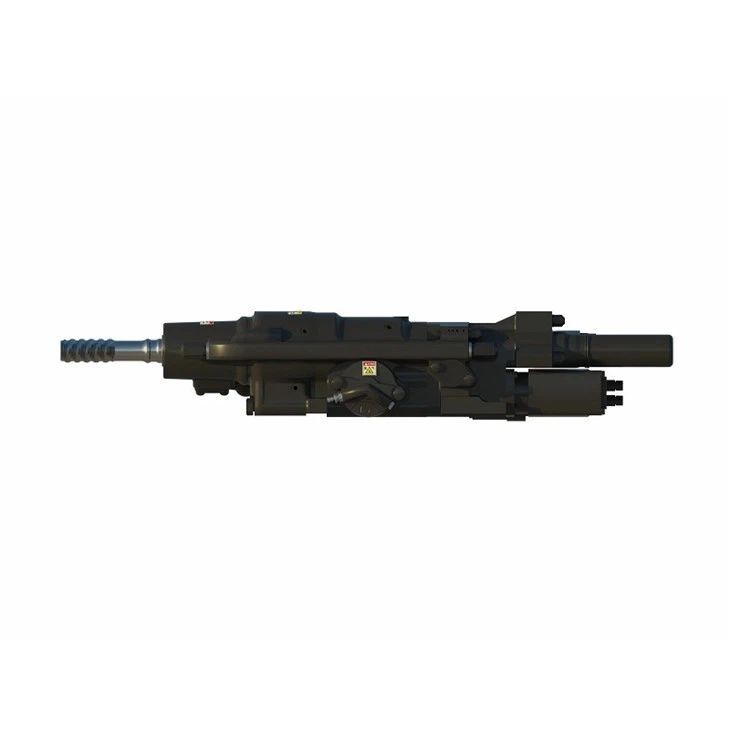

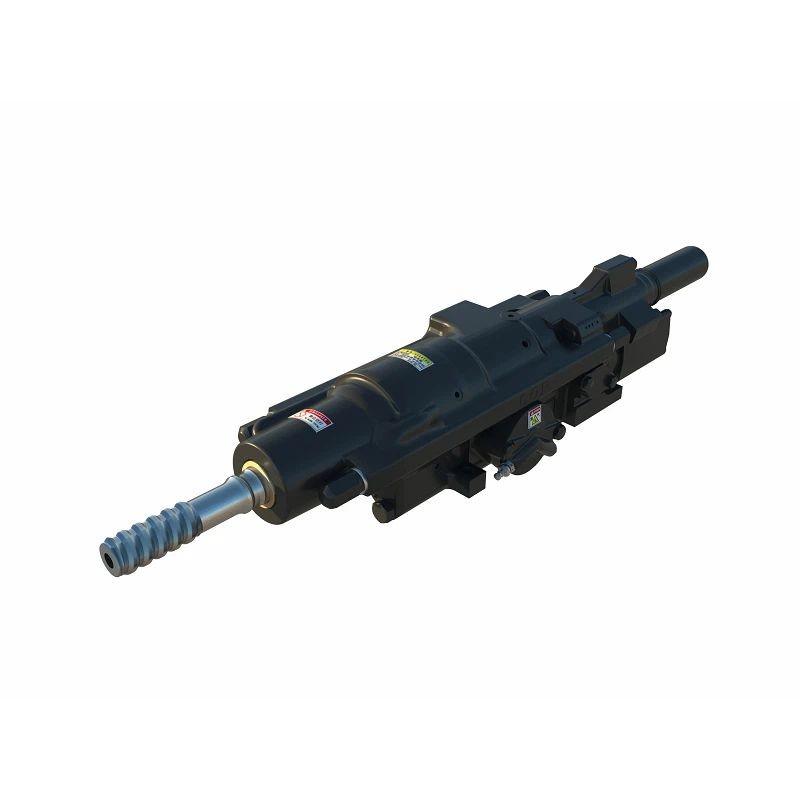

COP 1838 HE+ Hydraulic Rock Drill

Compared with the traditional pneumatic rock drill, hydraulic rock drill has the characteristics of less power consumption, high energy utilization rate, high drilling speed, easy operation and strong adaptability.
Drilling hole diameter :45-102mm
Rated power :19kw
Impact frequency :42-50Hz
Application conditions: mining, foundation engineering, water conservancy engineering.

Product Introduction

Highly efficient hydraulic dual cushion system and floating braze tails for increased rock drill productivity and drilling tool economy

Powerful infinitely variable bi-directional motor with high torque output and excellent speed control.

Independent lubrication of the head and drive, combined with separate pressurized lubrication of the end faces and side bolts, not only increases productivity but also reduces downtime.

Technical Data of COP 1838 HE+ Hydraulic Rock Drill

Impact power(max	19Kw
Impact frequency	42-50Hz
Impact pressure(max)	230bar
Impact flow rate	71–90L/min
Slewing torque(max)	1550Nm
Slewing speed(max)	0-215rpm
Rotation pressure(max)	200bar
Rotary flow rate	75L/min
Drilling diameter range	45-102mm
Suitable for drilling tails	T38/T45/T51
Weight	174kgs
