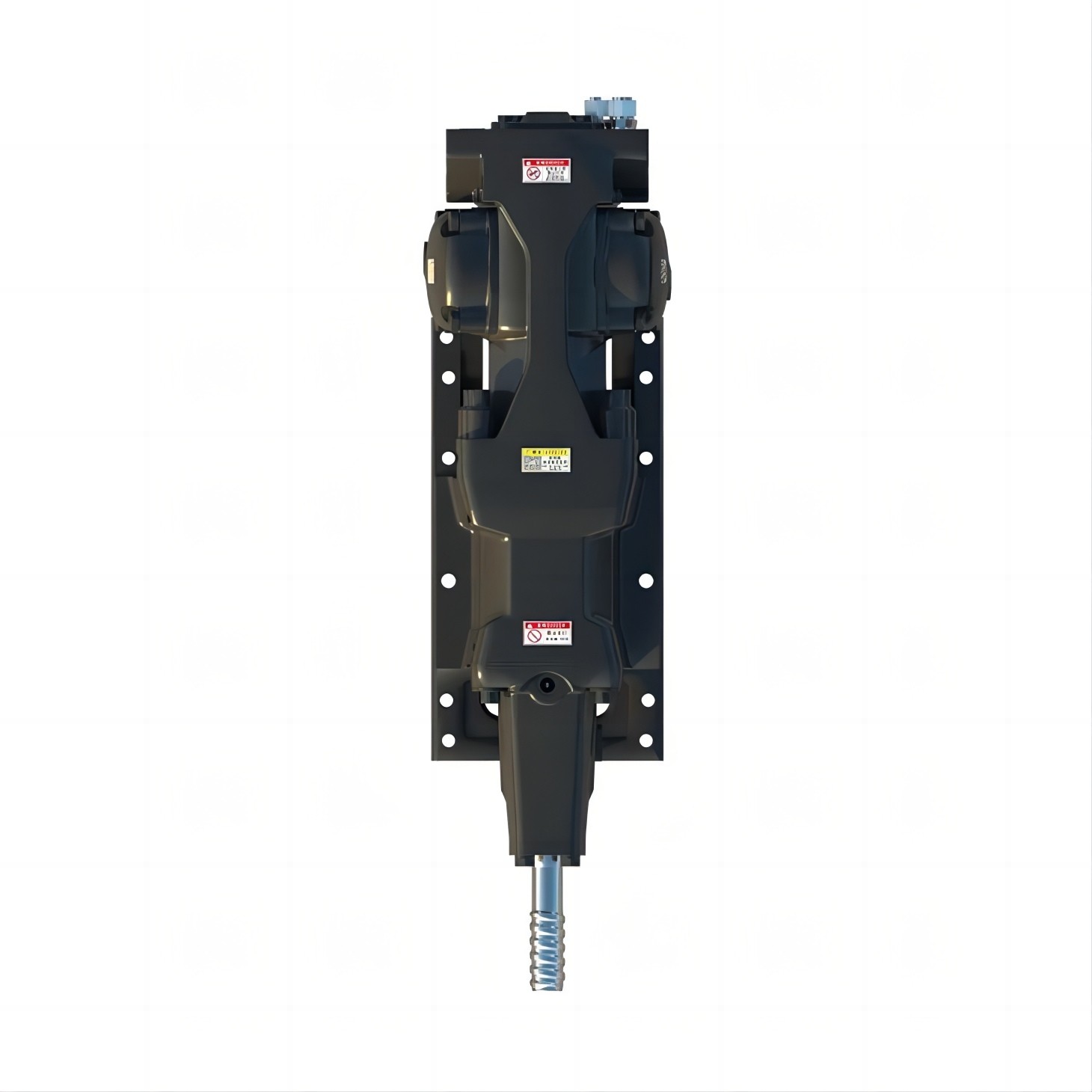

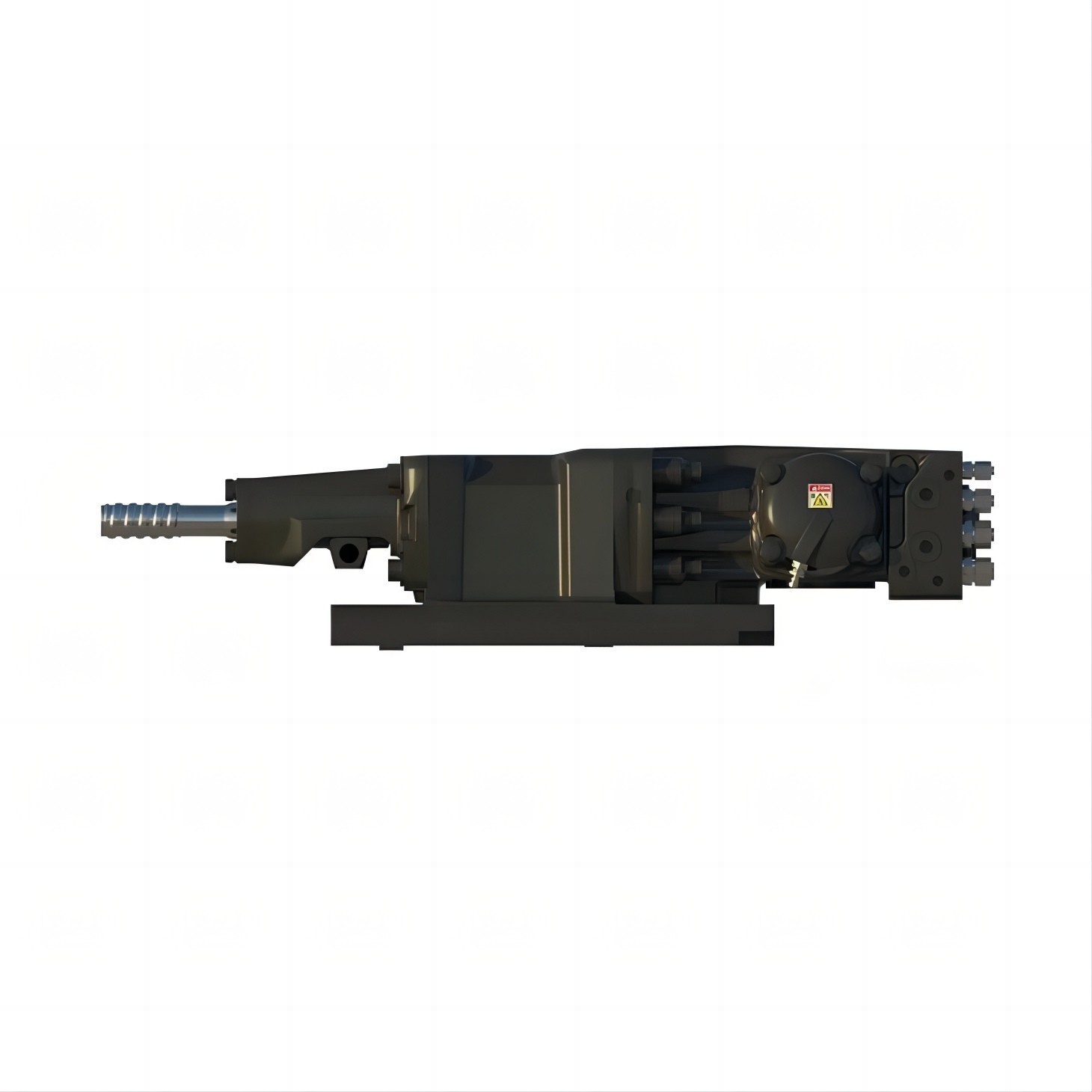

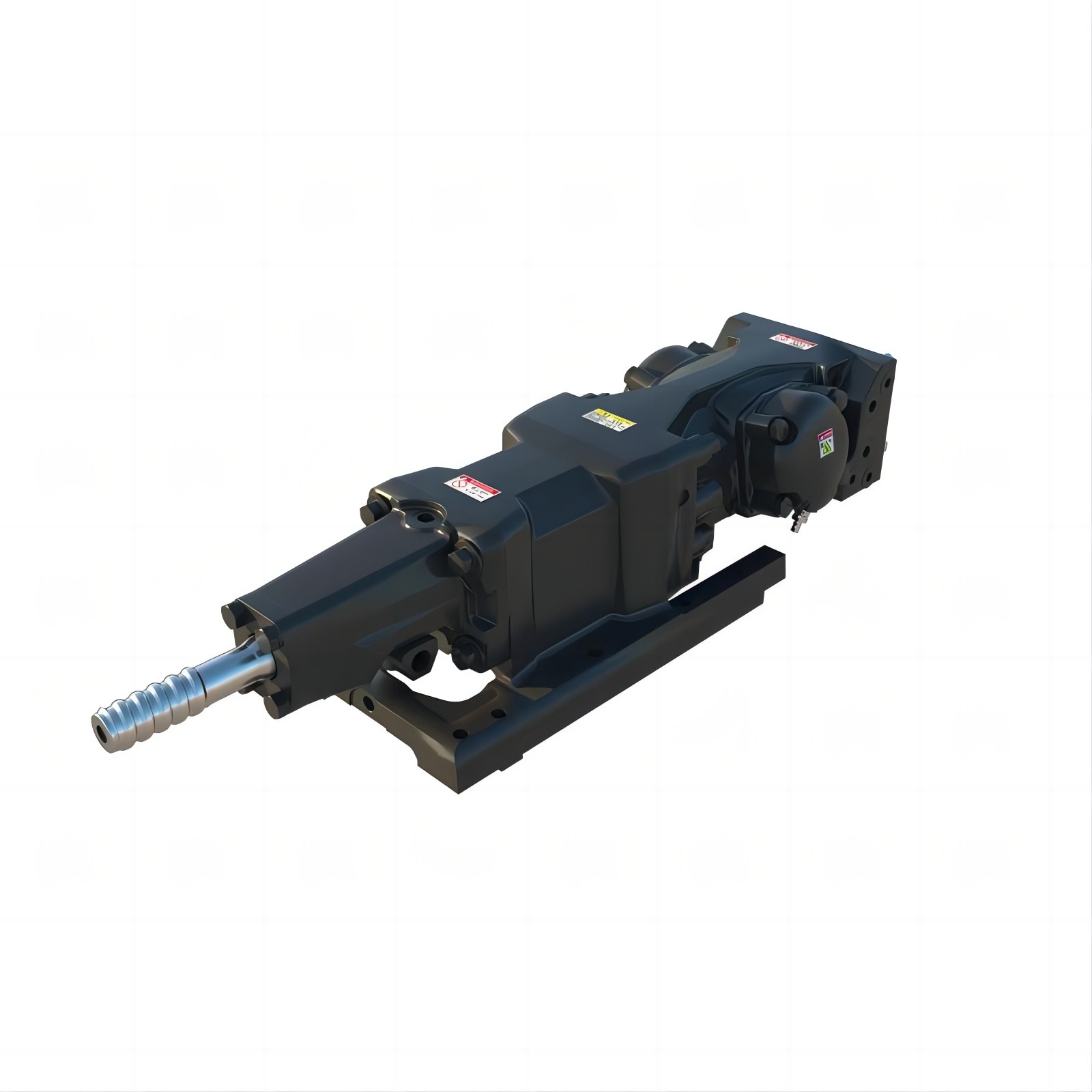

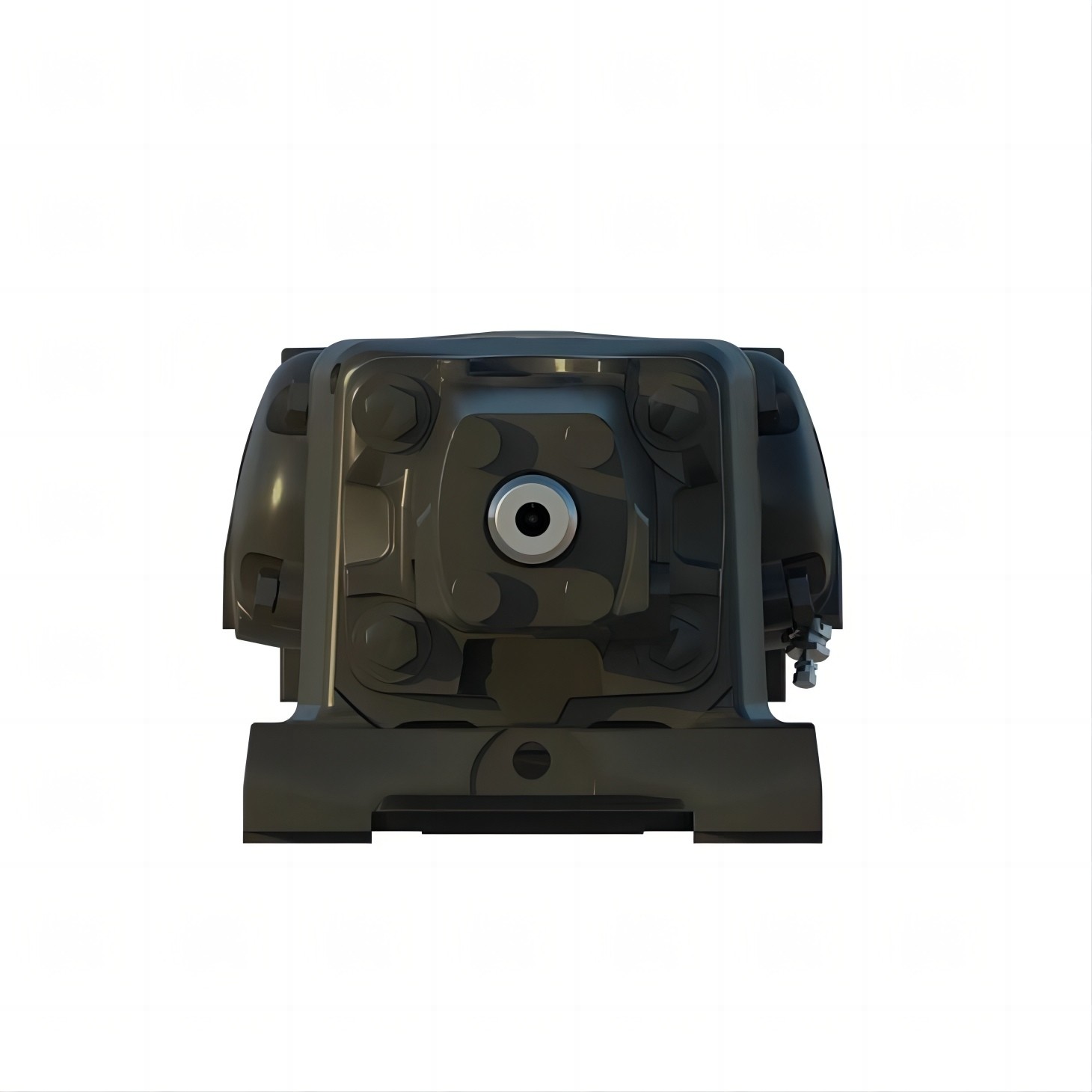

Hydraulic Drifter HL X5

Compared with the traditional pneumatic rock drill, hydraulic rock drill has the characteristics of less power consumption, high energy utilization rate, high drilling speed, easy operation and strong adaptability.
Drilling hole diameter :43-64mm
Rated power :20kw
Impact frequency :67Hz
Application conditions: mining, foundation engineering, water conservancy engineering.

Product Introduction

The HLX5 is a robust rock drill for heavy duty rock drilling. It is suitable for face drilling and deep hole drilling, and can also be used for anchor support.The HLX5 works even under the toughest conditions!

The HLX5 rock drill is known for its outstanding durability. Ruggedness is achieved through fewer pressure joints and a simple design with only two moving parts. The rock drill's design improves hydraulic efficiency while reducing wear on parts

The HLX5 offers excellent maintainability through modular construction and visual wear indicators. It also has an integrated transportation for easy service

Stem lubrication drainage is directed to the feed surface to minimize lubrication fumes and create a more comfortable working environment.

Technical Data of Hydraulic Drifter HL X5

Impact power(max	20Kw
Impact frequency	67Hz
Impact pressure(max)	120-220bar
Impact flow rate	120-135L/min
Slewing torque(max)	780Nm
Slewing speed(max)	0-250rpm
Rotation pressure(max)	175bar
Rotary flow rate	46-74L/min
Drilling diameter range	43-64mm
Suitable for drilling tails	R32/R38/T38/T45
Weight	210kgs
