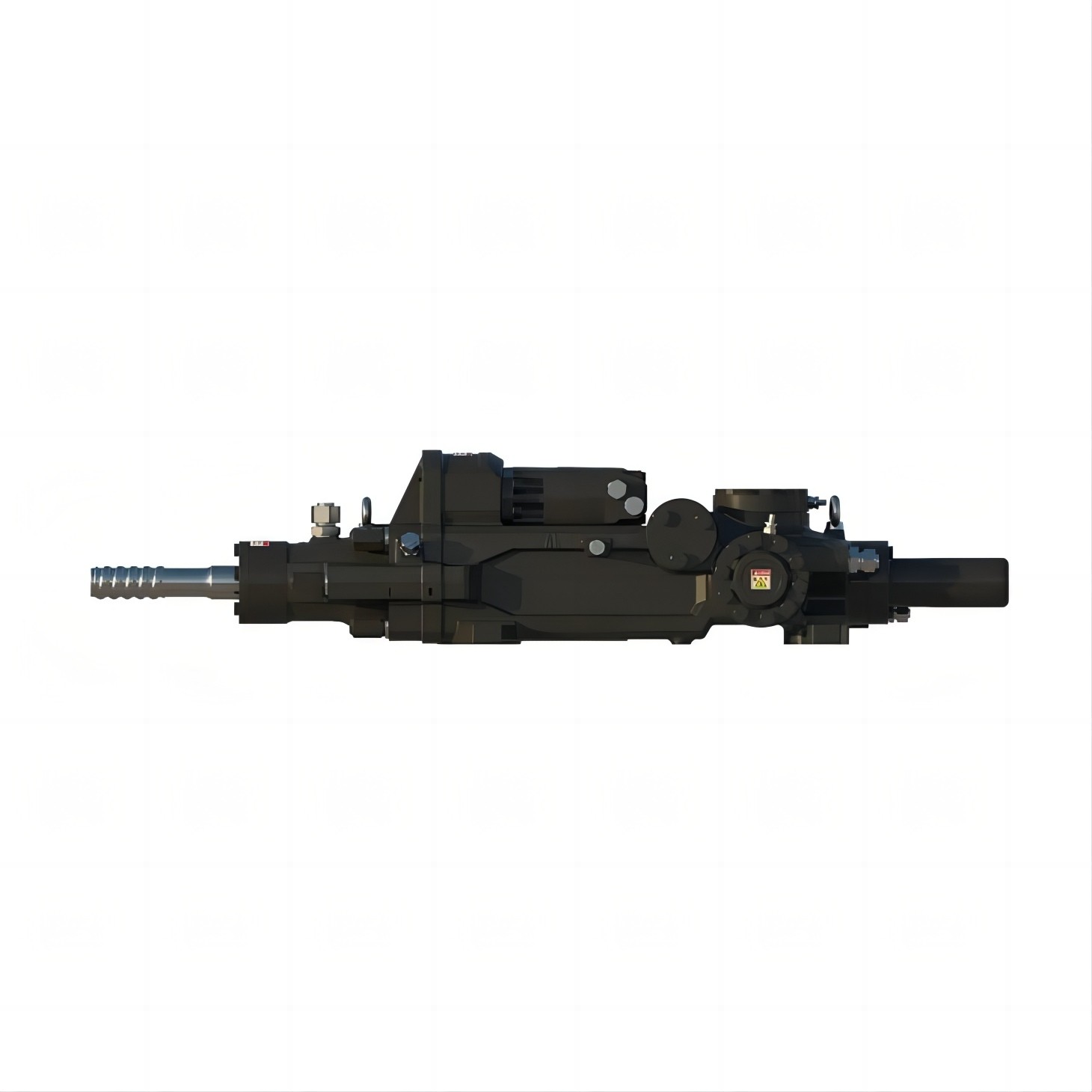

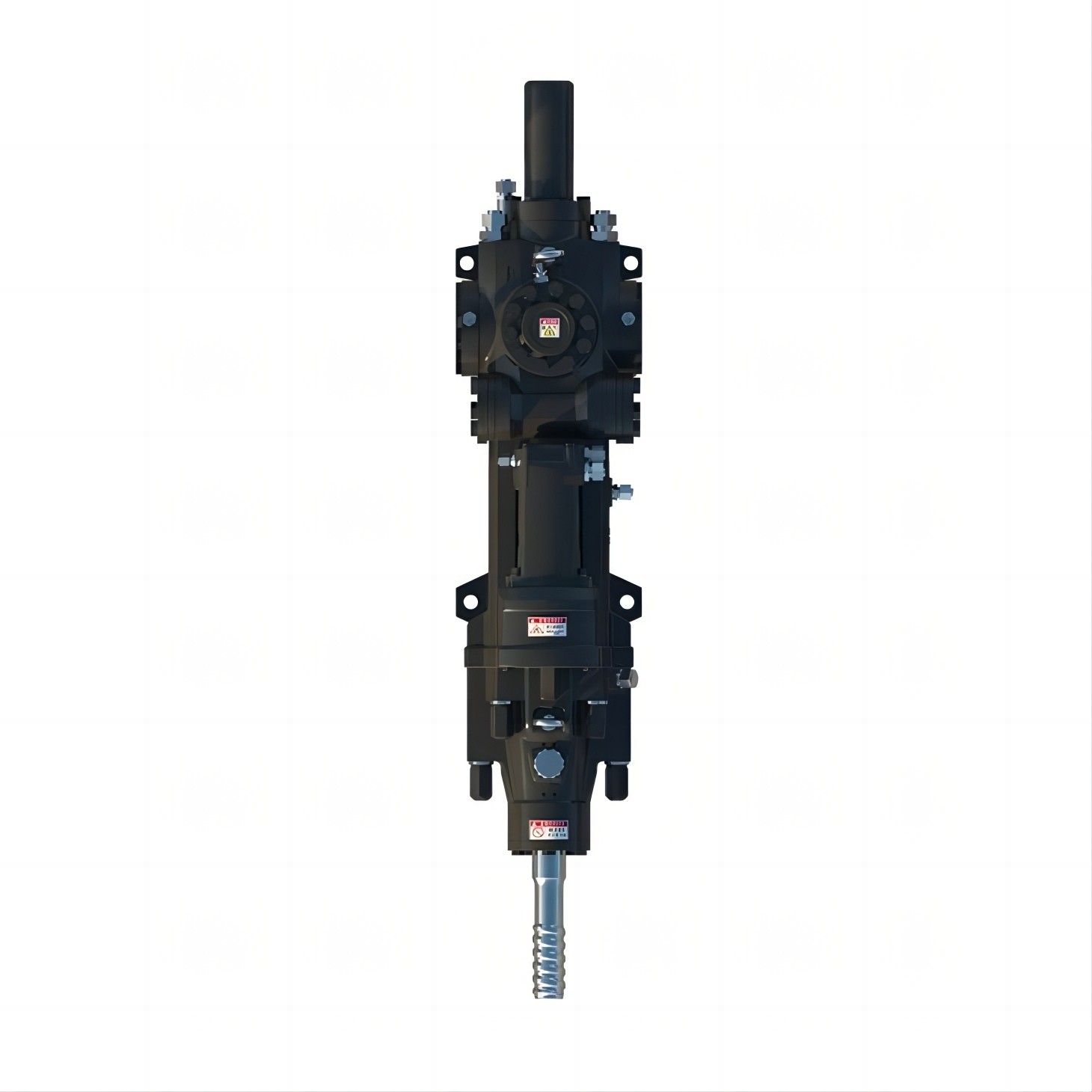

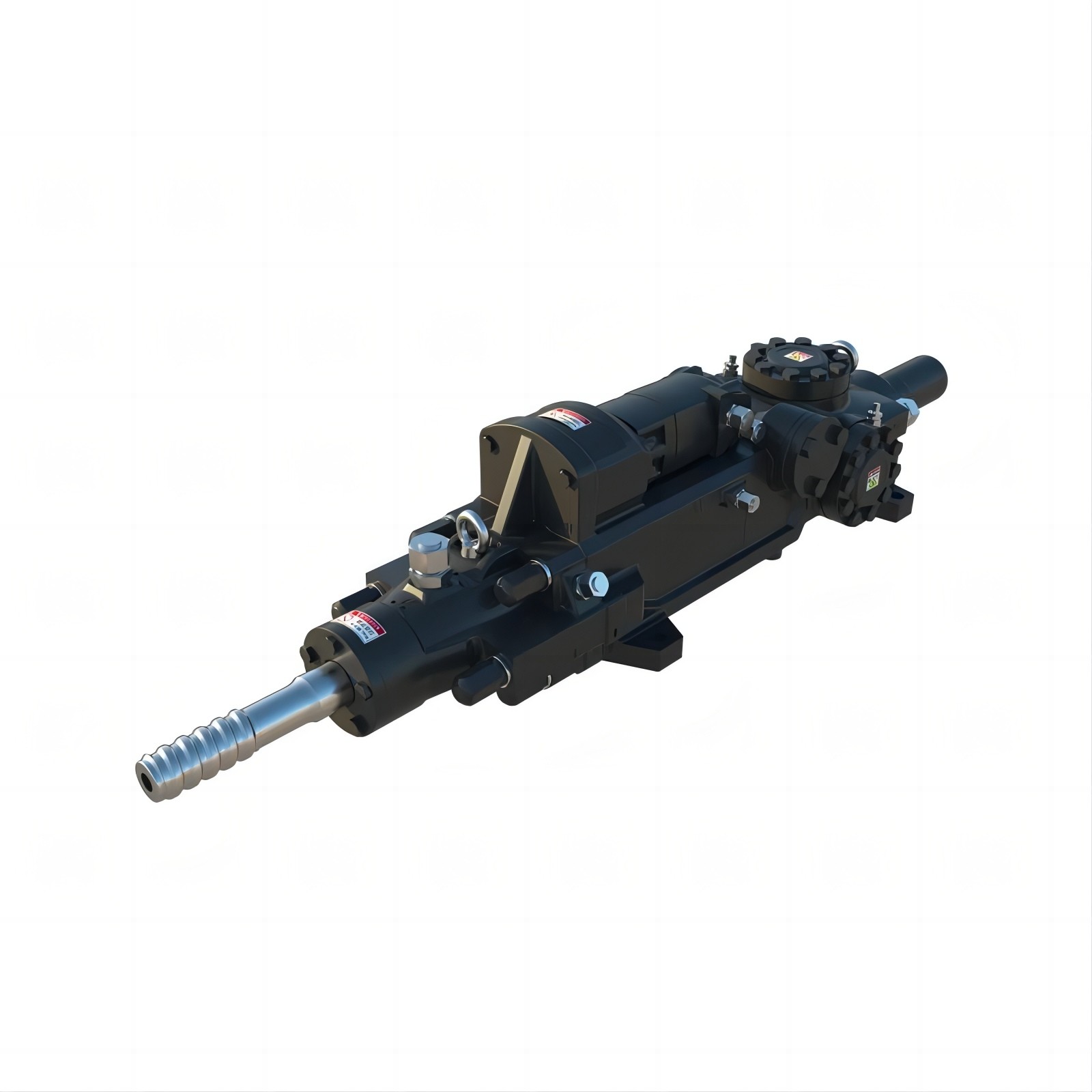

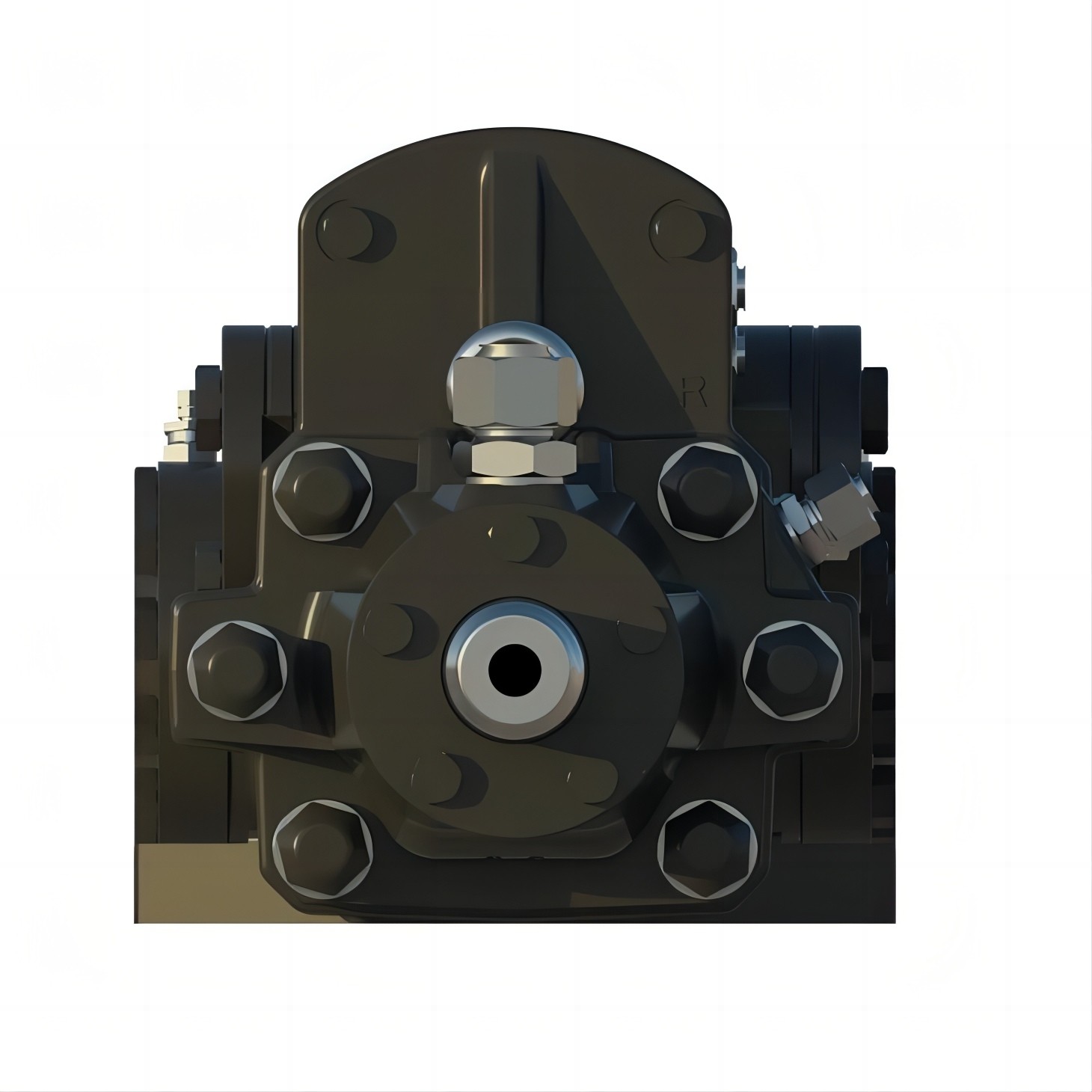

Hydraulic Drifter RD 22S

Compared with the traditional pneumatic rock drill, hydraulic rock drill has the characteristics of less power consumption, high energy utilization rate, high drilling speed, easy operation and strong adaptability.
Drilling hole diameter :89-127mm
Rated power :22kw
Impact frequency :38Hz
Application conditions: mining, foundation engineering, water conservancy engineering.

Product Introduction

Hydraulic drifter RD 22S hydraulic rock drill is a two-stage buffer, double-circuit commutation efficient

Hydraulic rock drill, the whole machine output power up to 22KW, especially used in underground mining,

open pit mining, water conservancy, national defense, tunneling, rock drilling and other construction projects.

This model is suitable for brazing tails (brazing rods): T45 (standard) and T51.

Technical Data of Hydraulic Drifter RD 22S

Impact power(max	22Kw
Impact frequency	38Hz
Impact pressure(max)	200bar
Impact flow rate	120L/min
Slewing torque(max)	1522Nm
Slewing speed(max)	0-140rpm
Rotation pressure(max)	140bar
Rotary flow rate	75L/min
Drilling diameter range	89-127mm
Suitable for drilling tails	T45/T51
Weight	230kgs
