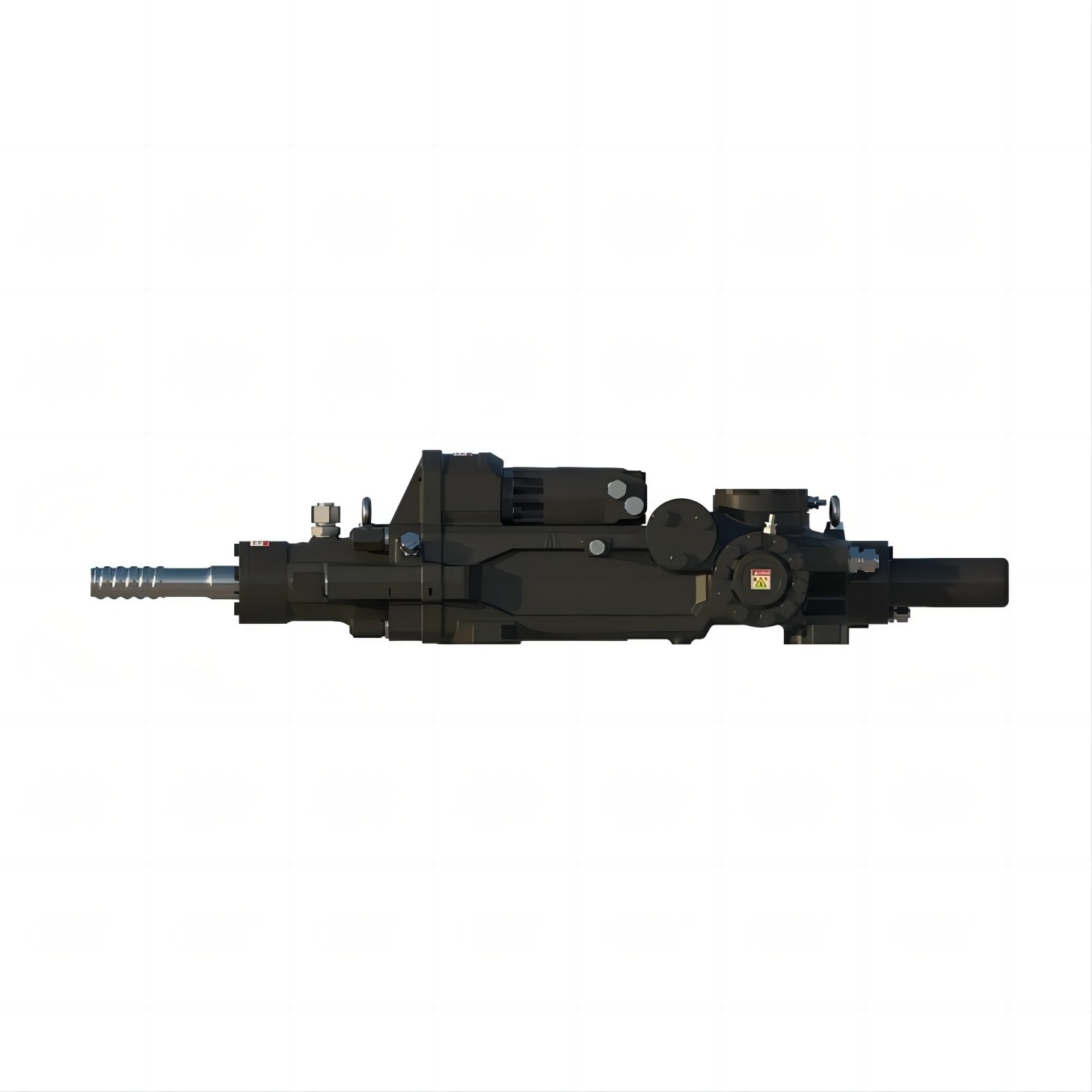

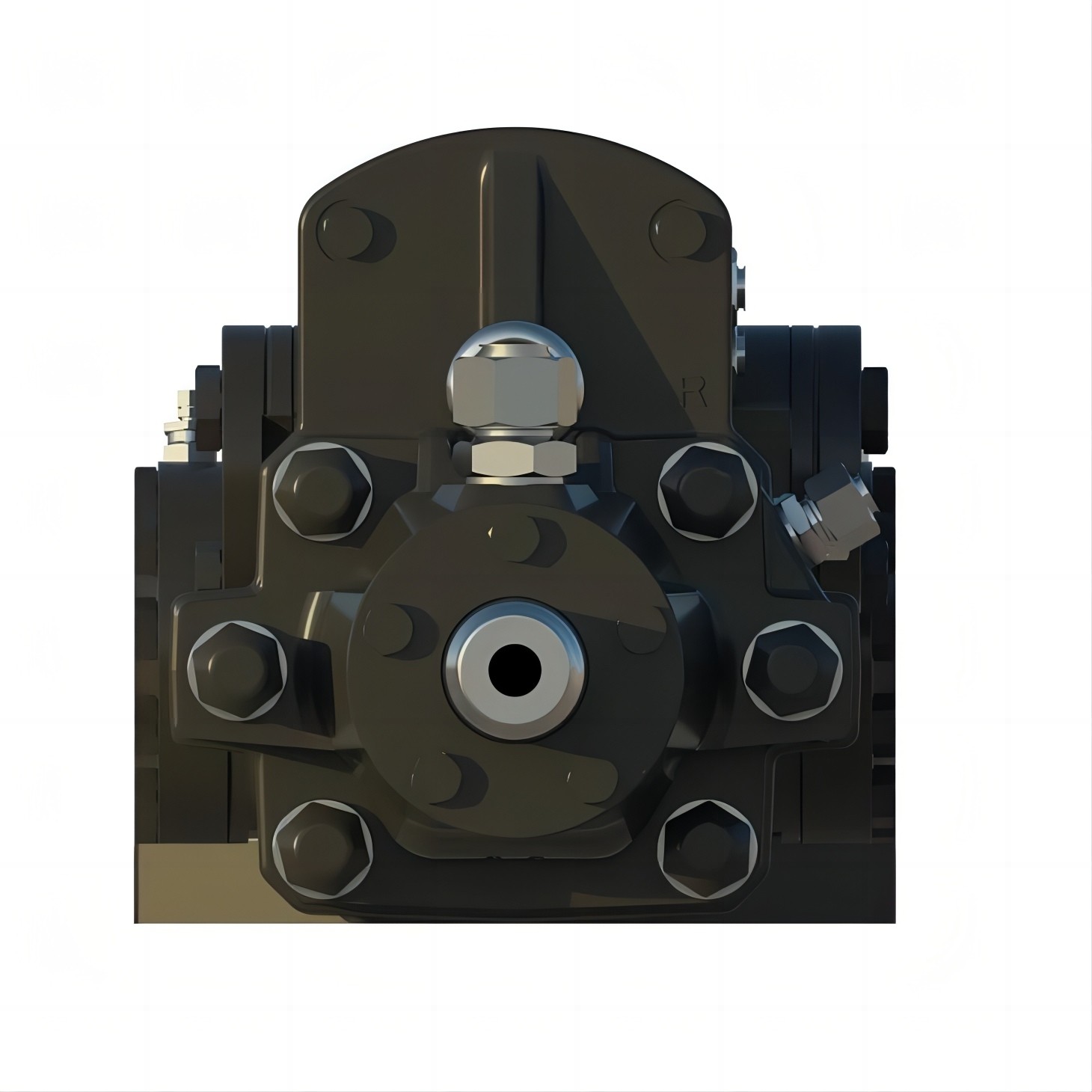

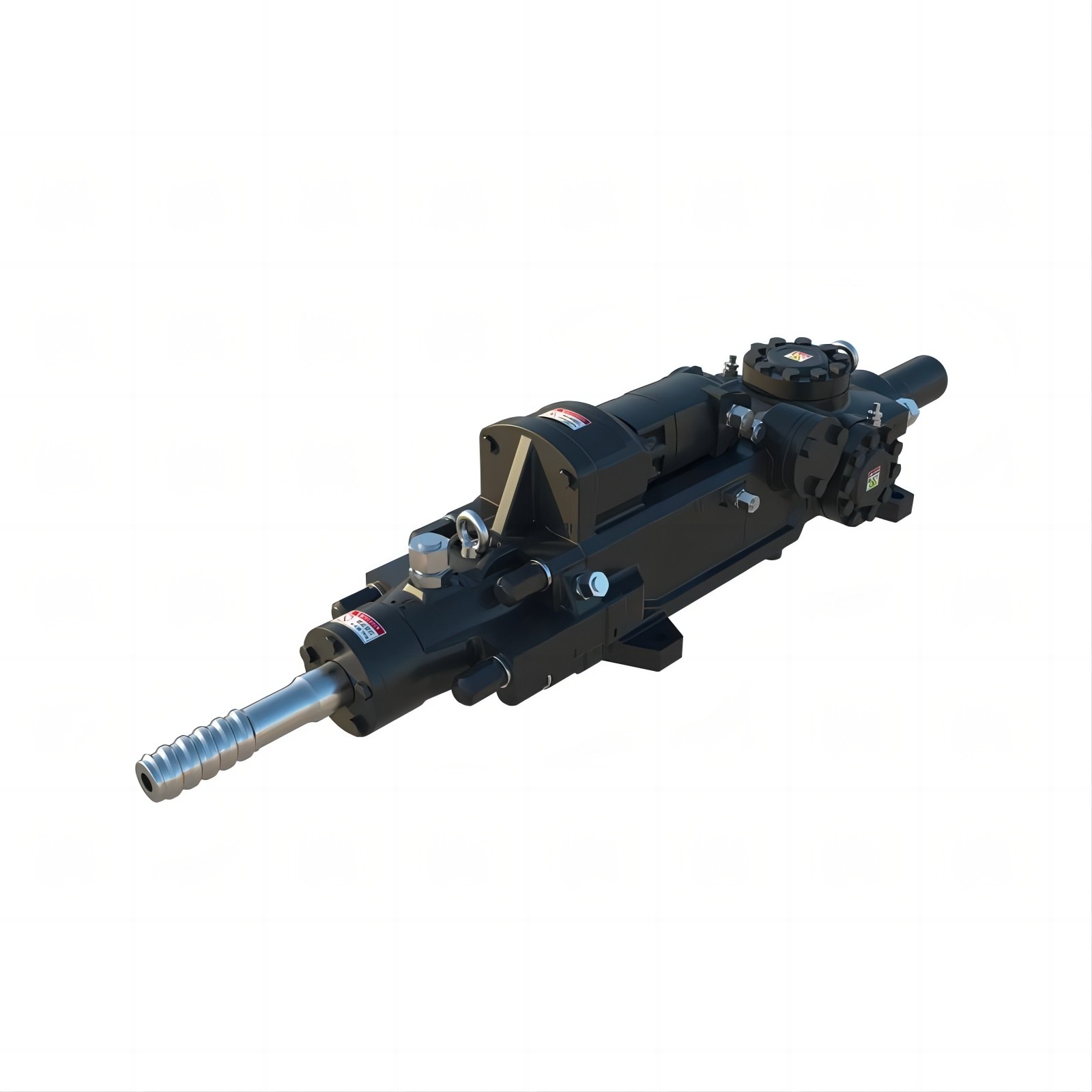

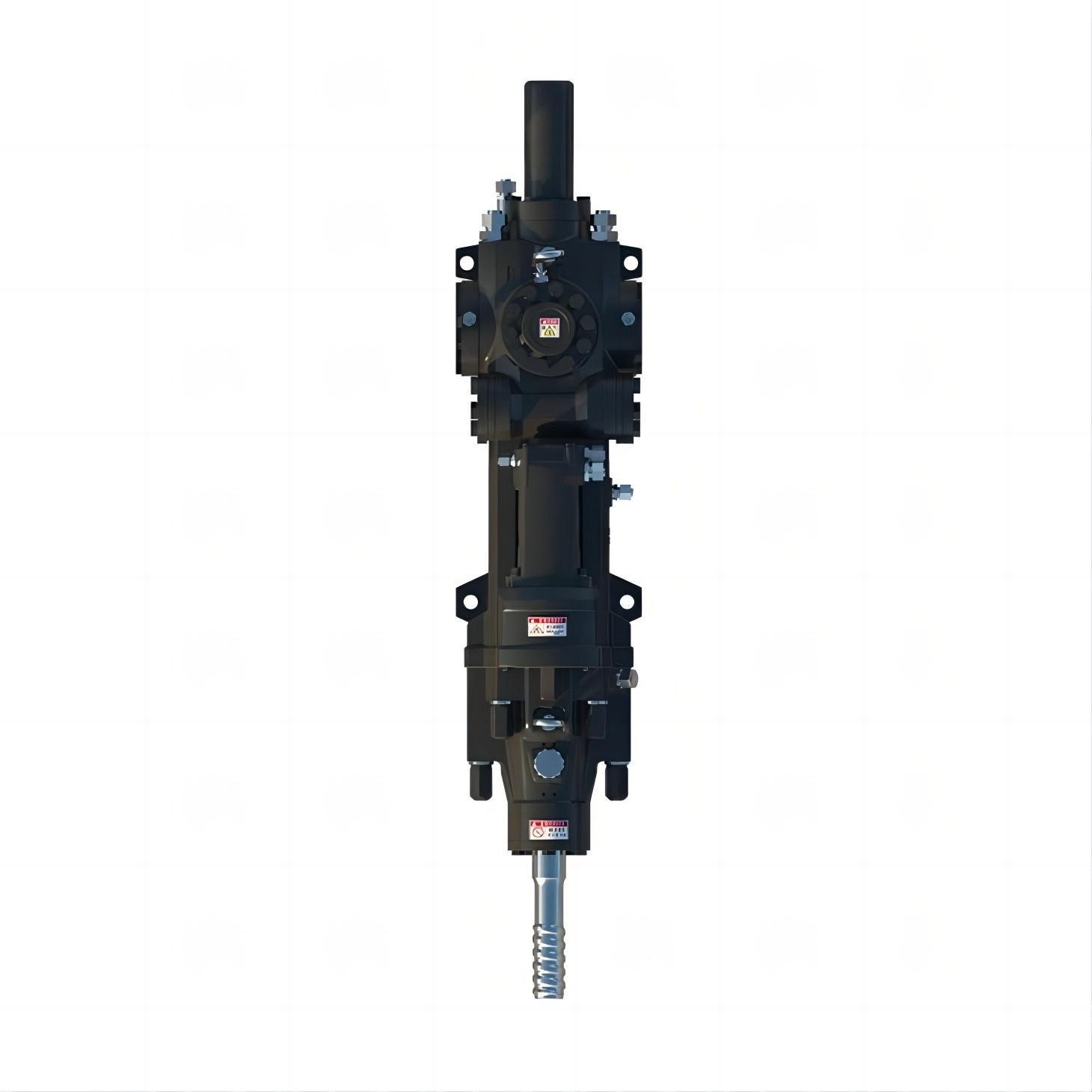

Hydraulic Drifter RD 18S

Compared with the traditional pneumatic rock drill, hydraulic rock drill has the characteristics of less power consumption, high energy utilization rate, high drilling speed, easy operation and strong adaptability.
Drilling hole diameter :76-115mm
Rated power :18kw
Impact frequency :35Hz
Application conditions: mining, foundation engineering, water conservancy engineering.

Product Introduction

Hydraulic drifter RD 18S is a two-stage buffer, double-circuit reversing efficiency

Hydraulic rock drill, the whole machine output power up to 22KW, especially used in underground mining, tunnelling, foundation engineering, water conservancy engineering, urban construction, energy engineering, defence engineering, quarrying, urban excavation engineering, environmental protection, marine engineering, geotechnical engineering, etc.

defence engineering, quarrying, urban excavation, environmental protection, marine engineering, geotechnical engineering

scientific research, agricultural engineering, underground gas storage construction.

This model is suitable for brazing tails (rods): T45 (standard) and T51.

Technical Data of Hydraulic Drifter RD 18S

Impact power(max	18Kw
Impact frequency	35Hz
Impact pressure(max)	200bar
Impact flow rate	100L/min
Slewing torque(max)	1522Nm
Slewing speed(max)	0-140rpm
Rotation pressure(max)	140bar
Rotary flow rate	75L/min
Drilling diameter range	76-115mm
Suitable for drilling tails	R38/T38/T45/T51
Weight	230kgs
