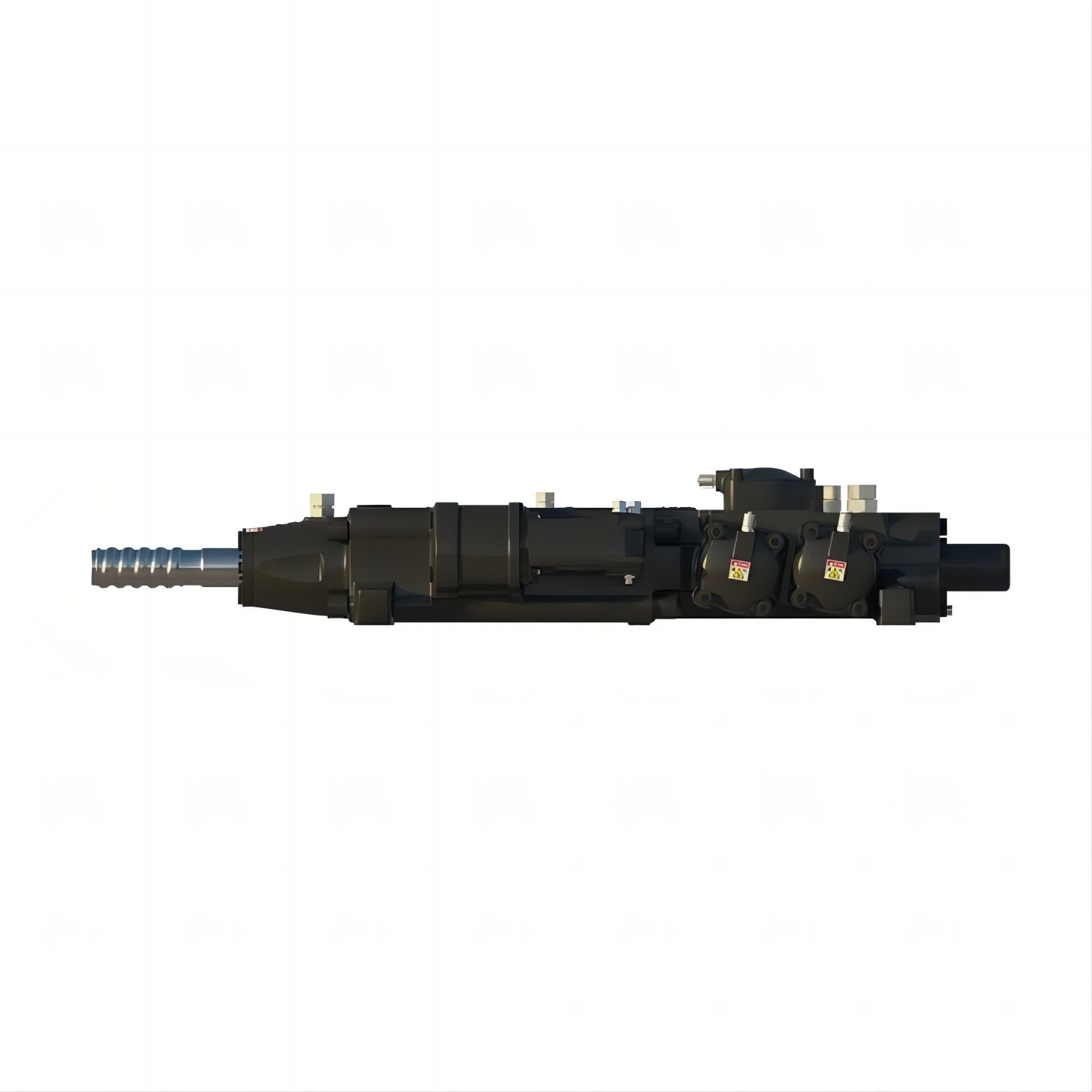

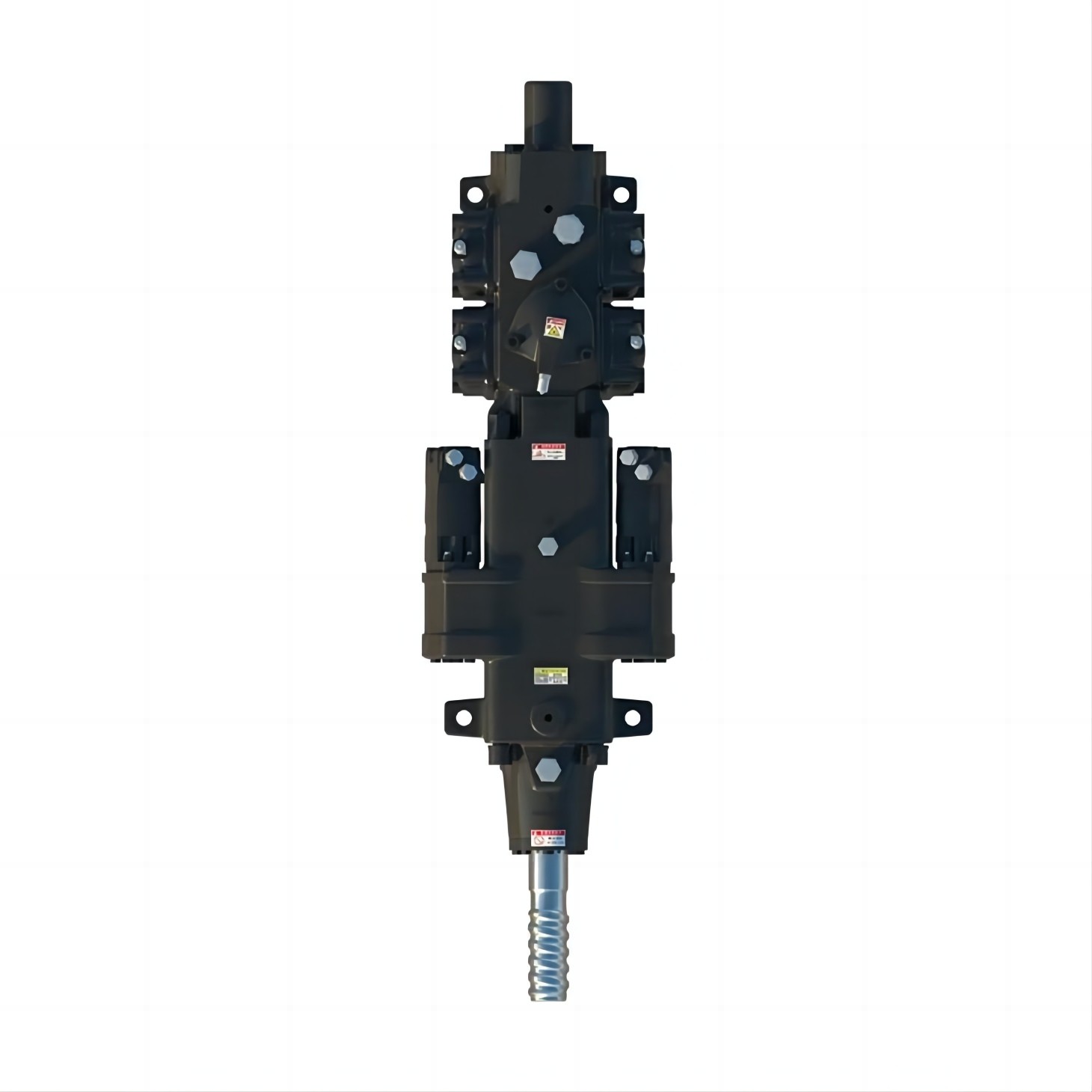

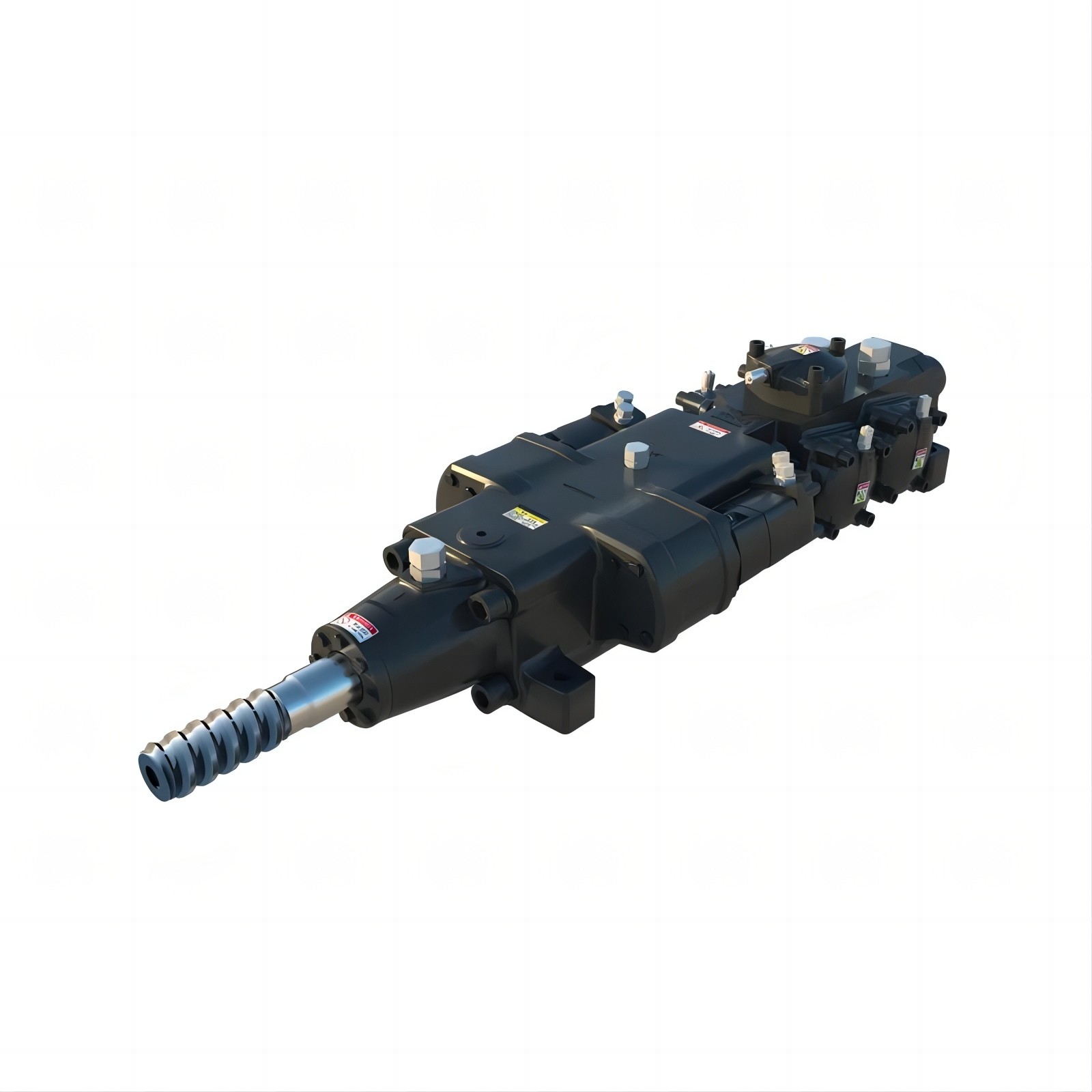

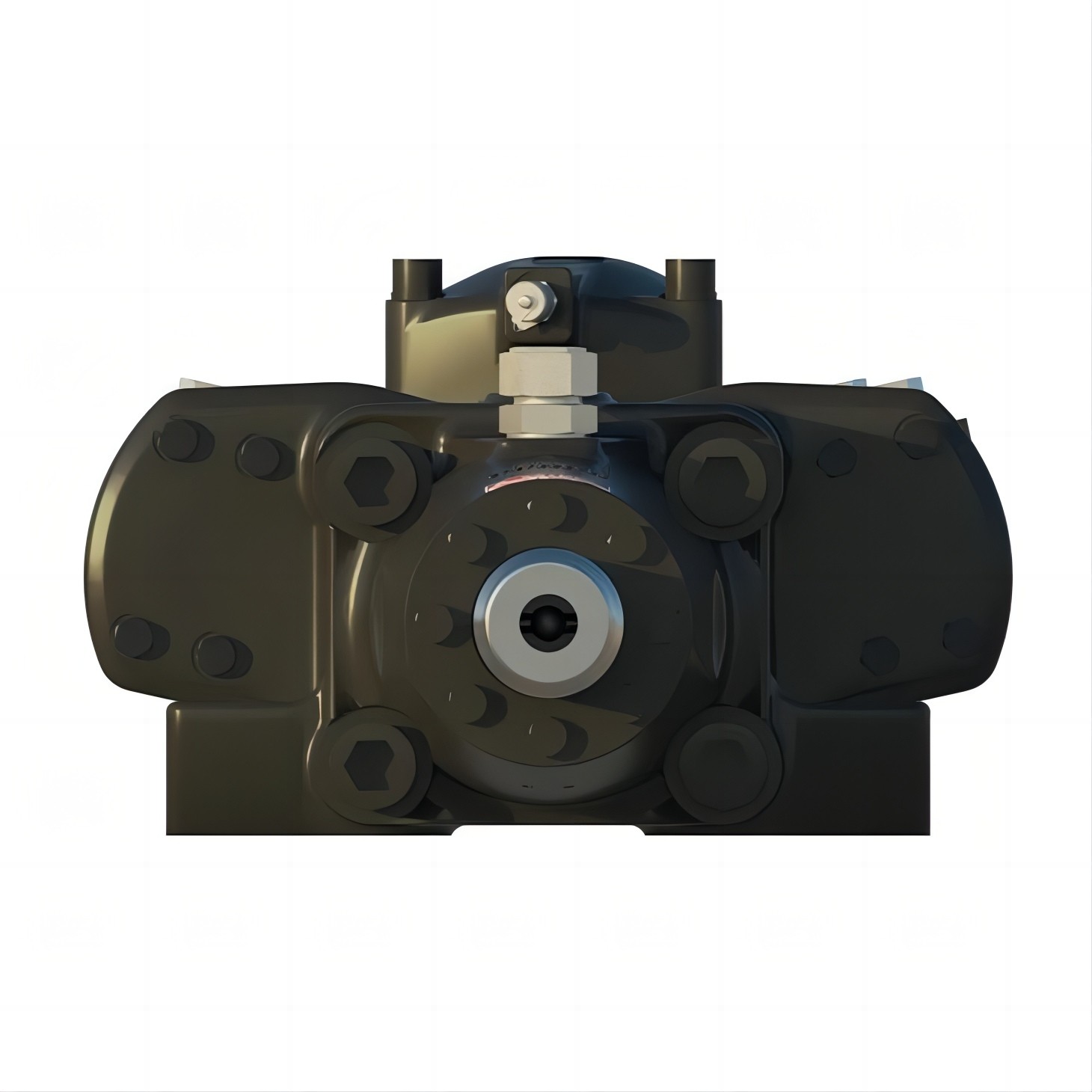

Hydraulic Drifter LD30S
Compared with the traditional pneumatic rock drill, hydraulic rock drill has the characteristics of less power consumption, high energy utilization rate, high drilling speed, easy operation and strong adaptability.
Drilling hole diameter :127-152mm
Rated power :30kw
Impact frequency :35Hz
Application conditions: mining, foundation engineering, water conservancy engineering.
Product Introduction
LD30S is a heavy duty hydraulic rock drill equipped with two high and two low accumulators each, and one buffer accumulator, which is suitable for open pit hydraulic cart, and can also be used for deep hole drilling downhole, this rock drill is used for open pit rock drilling with GT60 or ST68 brazing rods or 2650mm tubular drilling rods for drilling 27-152mm diameter gun holes, and for downhole operation with 60 or 68mm brazing rods and drilling rods, the drill is used to drill 127-152mm diameter gun holes. Drill 127-152mm diameter holes in underground work with 60 or 68mm drill rods and drill pipes.
Technical Data of Hydraulic Drifter LD30S
Impact power(max | 30Kw |
| Impact frequency | 30-40Hz |
| Impact pressure(max) | 120-180bar |
| Impact flow rate | 220L/min |
| Slewing torque(max) | 2800Nm |
| Slewing speed(max) | 0-200rpm |
| Rotation pressure(max) | 170bar |
| Rotary flow rate | 150L/min |
| Drilling diameter range | 127-152mm |
| Suitable for drilling tails | GT60/GT68 |
| Weight | 415kgs |
