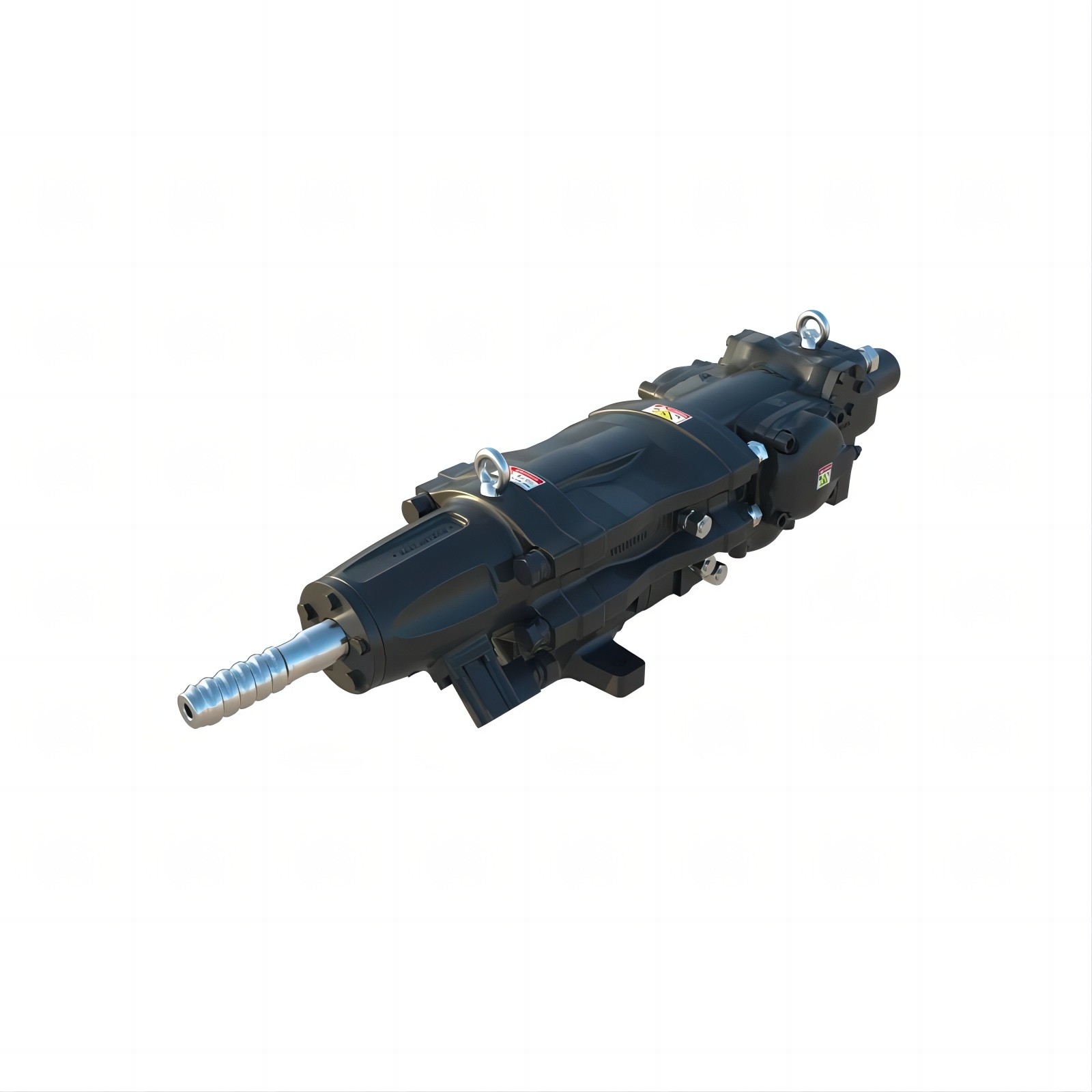

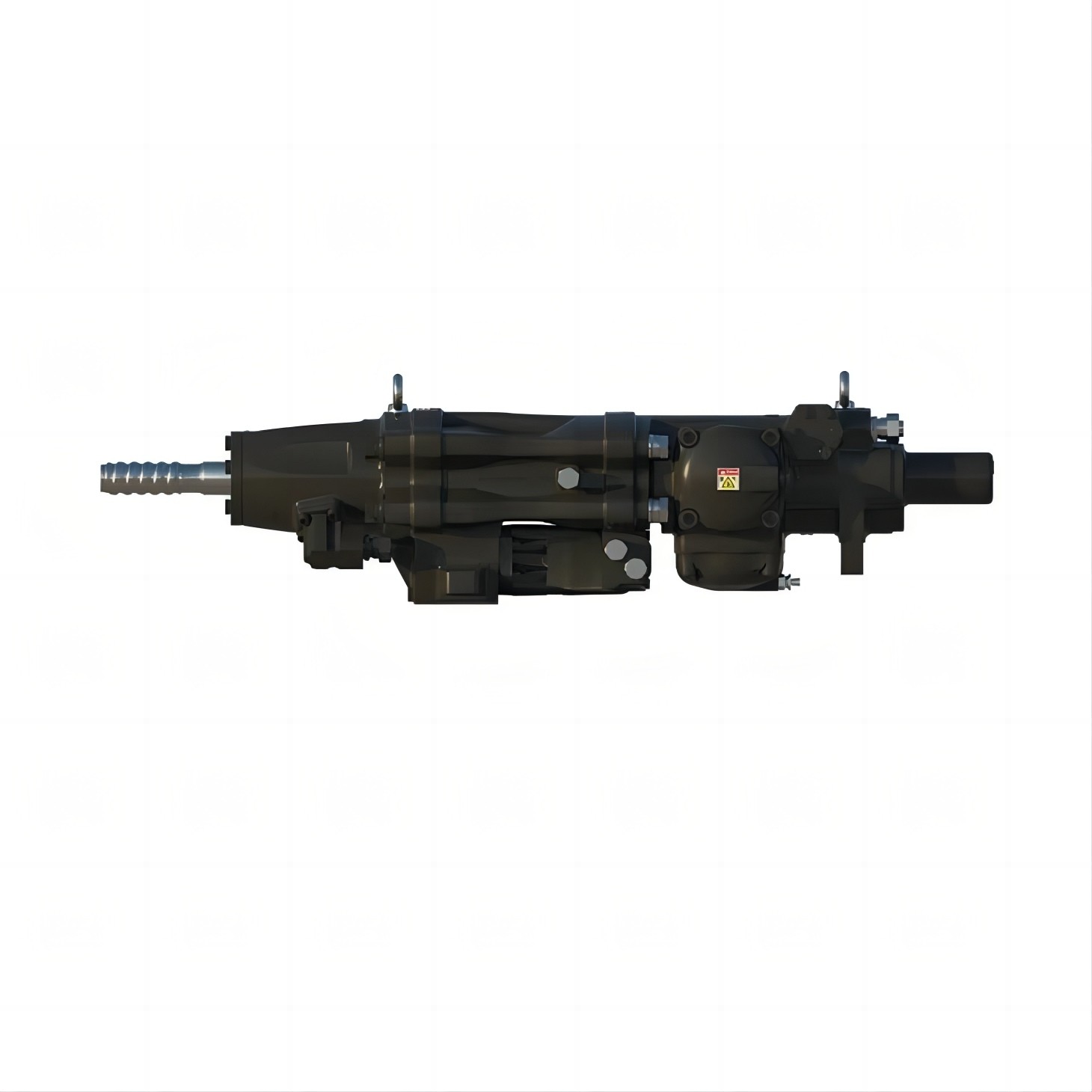

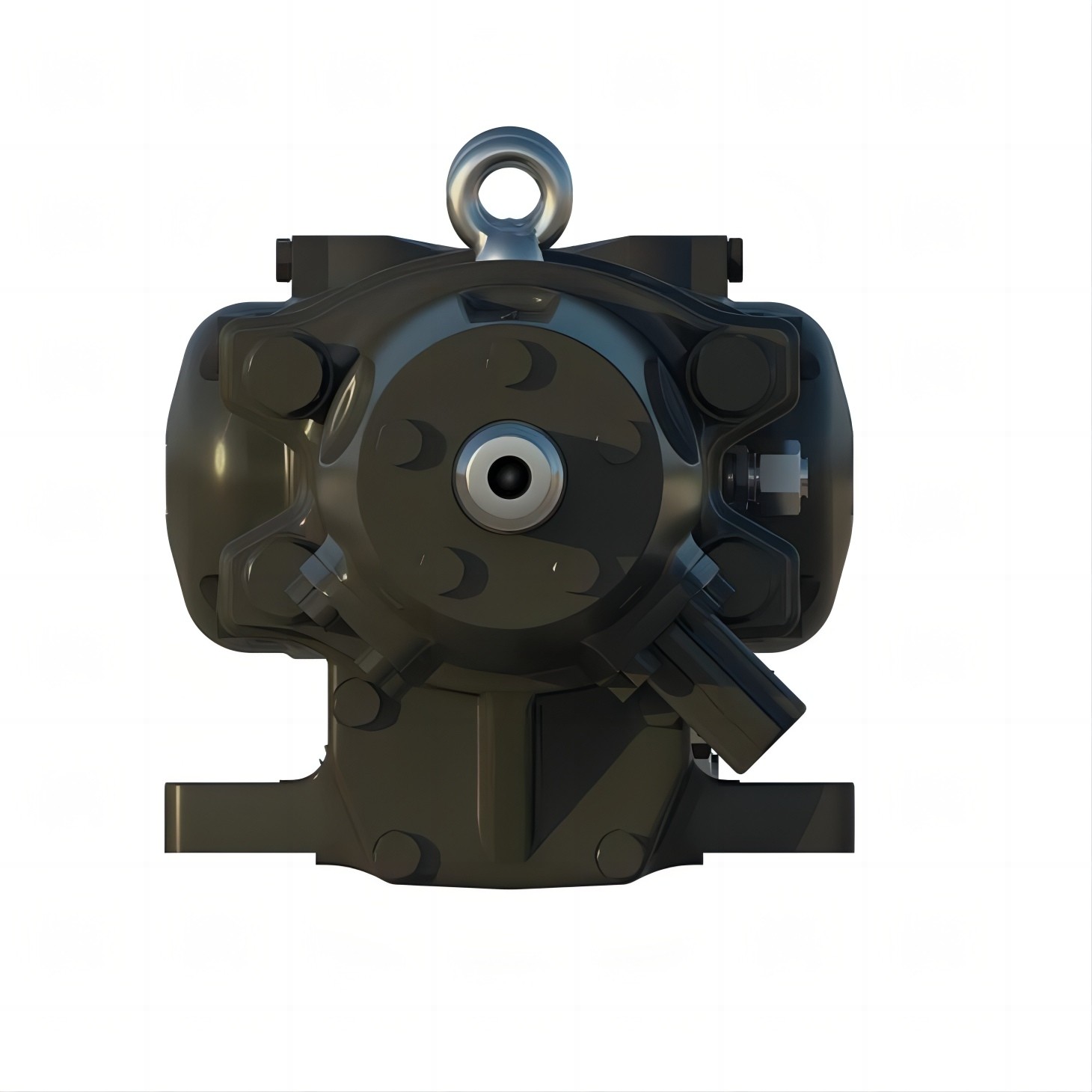

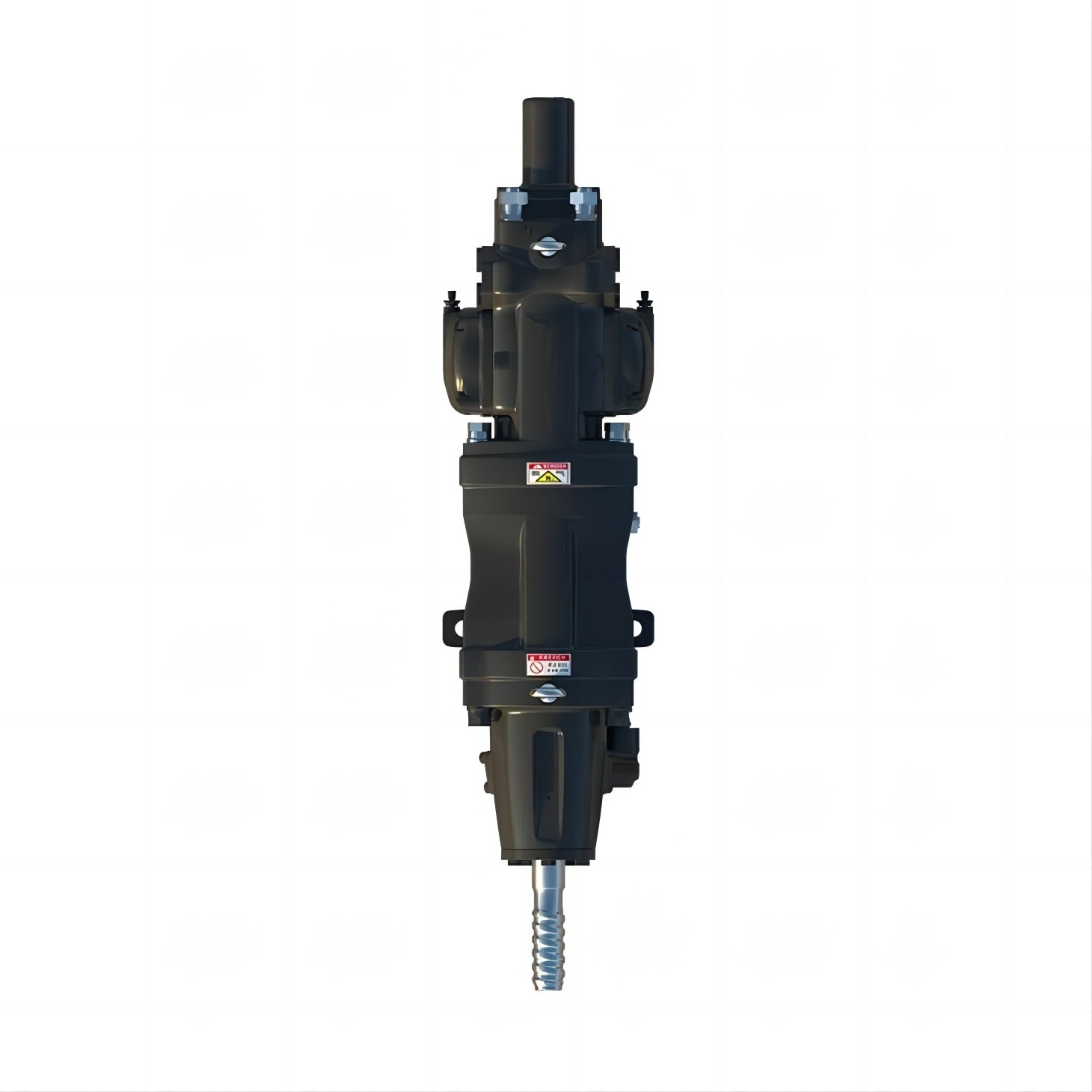

Hydraulic Drifter LM16E

Compared with the traditional pneumatic rock drill, hydraulic rock drill has the characteristics of less power consumption, high energy utilization rate, high drilling speed, easy operation and strong adaptability.
Drilling hole diameter :76-89mm
Rated power :16kw
Impact frequency :50Hz
Application conditions: mining, foundation engineering, water conservancy engineering.

Product Introduction

LEM16E hydraulic rock drill is a modified rotary mechanism,

internal oil-mist lubricated high-frequency impact hydraulic rock drill, especially used in underground mining, surface mining, water conservancy, national defense, tunneling, rock drilling and other construction projects.

This model is suitable for drilling tails (rods): R38, T38 (standard) and T45.

Technical Data of Hydraulic Drifter LM16E

Impact power(max	16Kw
Impact frequency	50Hz
Impact pressure(max)	180bar
Impact flow rate	65L/min
Slewing torque(max)	960Nm
Slewing speed(max)	0-200rpm
Rotation pressure(max)	120bar
Rotary flow rate	60L/min
Drilling diameter range	76-89mm
Suitable for drilling tails	R38/T38/T45
Weight	185kgs
