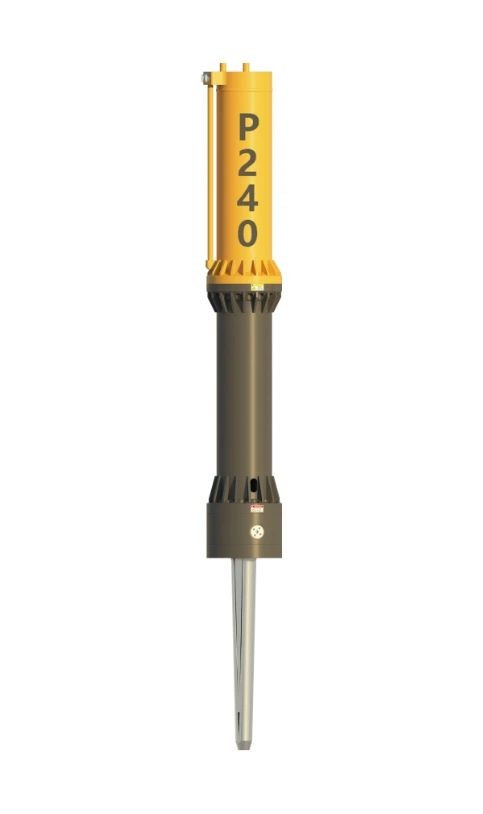

P240 Hydraulic Rock Splitter

Hydraulic splitter product composition: by the hydraulic pump station (also known as the power station) and splitter (also known as the splitter gun) two major components.
Splitting force (two-stage pressurization):8000T
Split block length:1035mm

Product Introduction

1. Hydraulic splitter product composition: by the hydraulic pump station (also known as the power station) and splitter (also known as the splitter gun) two major components.

2. Hydraulic rock splitter P240 working principle: the pump station output of ultra-high-pressure hydraulic oil as the working power, and after mechanical amplification so that the split object in a predetermined direction.

3. Hydraulic splitter application areas:

3.1 Stone mining operations: ore (metal ore, non-metallic ore) mining.

3.2 Concrete components (cement pavement, machine tool foundations, bridges and housing components) local and total demolition operations.

3.3 Water conservancy and hydropower dangerous rock slope gravel treatment.

3.4 Non-excavation pipeline construction, removal of roadblock boulders; rock breaking in real estate pits.

Technical Data of P240 Hydraulic Rock Splitter

Equipment weight	1050kgs

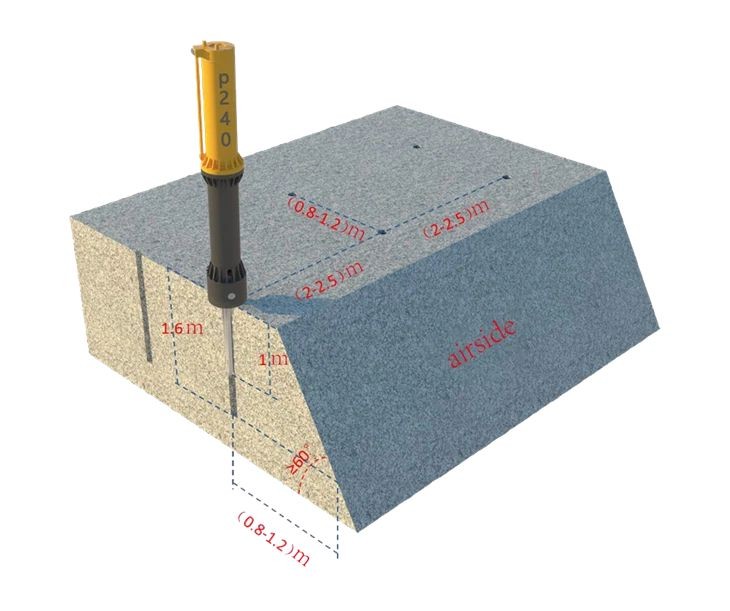

Drilling diameter	Φ115mm
Drilling depth	1.6m
Splitting force (two-stage pressurization)	8000T
Gap between two parts	30mm
Diameter of split block	Φ115mm
Split block length	1035mm
Splitter length	3915mm
Length of hydraulic cylinder	2880mm
