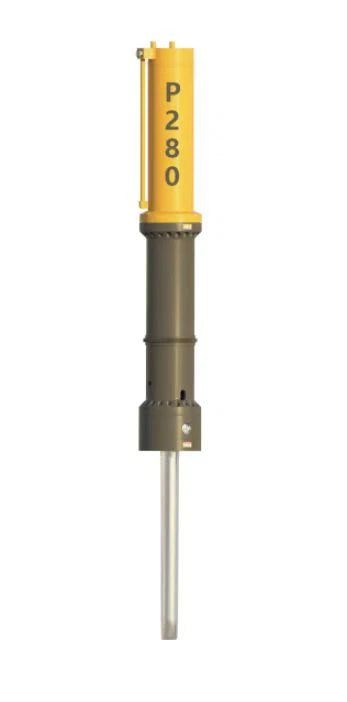

P280 Hydraulic Rock Splitter

Hydraulic splitter product composition: by the hydraulic pump station (also known as the power station) and splitter (also known as the splitter gun) two major components.
Splitting force (two-stage pressurization):12000T
Splitting block length:1480mm
Hole distance:1600-1800mm

Product Introduction

1. Hydraulic splitter product composition: by the hydraulic pump station (also known as the power station) and splitter (also known as the splitter gun) two major components.

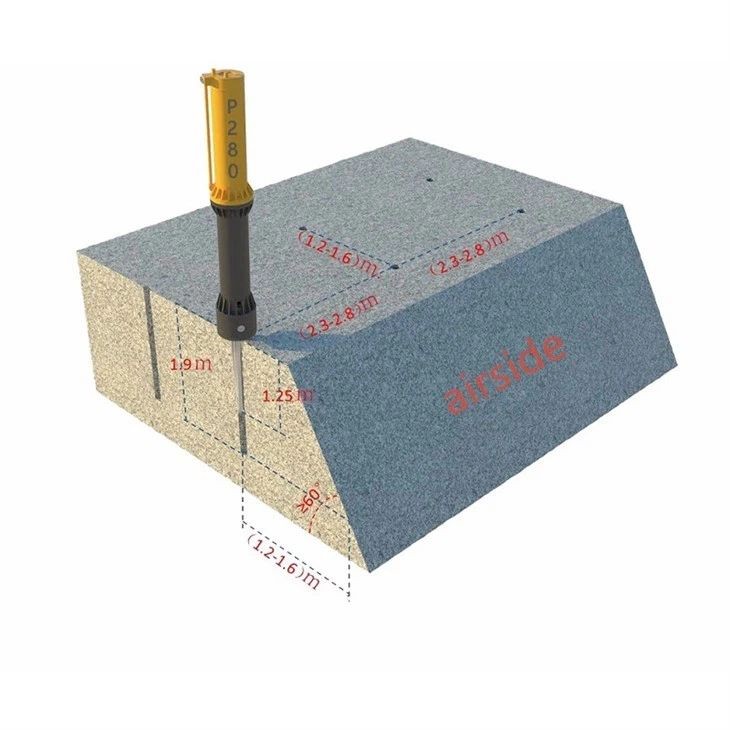

2. Hydraulic rock splitter P240 working principle: the pump station output of ultra-high-pressure hydraulic oil as the working power, and after mechanical amplification so that the split object in a predetermined direction.

3. Hydraulic splitter application areas:

3.1 Stone mining operations: ore (metal ore, non-metallic ore) mining.

3.2 Concrete components (cement pavement, machine tool foundations, bridges and housing components) local and total demolition operations.

3.3 Water conservancy and hydropower dangerous rock slope gravel treatment.

3.4 Non-excavation pipeline construction, removal of roadblock boulders; rock breaking in real estate pits.

Technical Data of P280 Hydraulic Rock Splitter


Equipment weight1050kgs
Drilling diameterΦ115mm
Drilling depth

1.6m

Splitting force (two-stage pressurization)8000T
Gap between two parts30mm
Diameter of split blockΦ115mm
Split block length1035mm
Splitter length3915mm
Length of hydraulic cylinder2880mm
