Rock Drilling Equipment

Adopting a mechanical fuel injection engine that meets the national emission standards, it has strong power, energy conservation, environmental protection, high reliability, and excellent performance. Key hydraulic components adopt the latest technological achievements, with low energy consumption and fast response.

Product Introduction

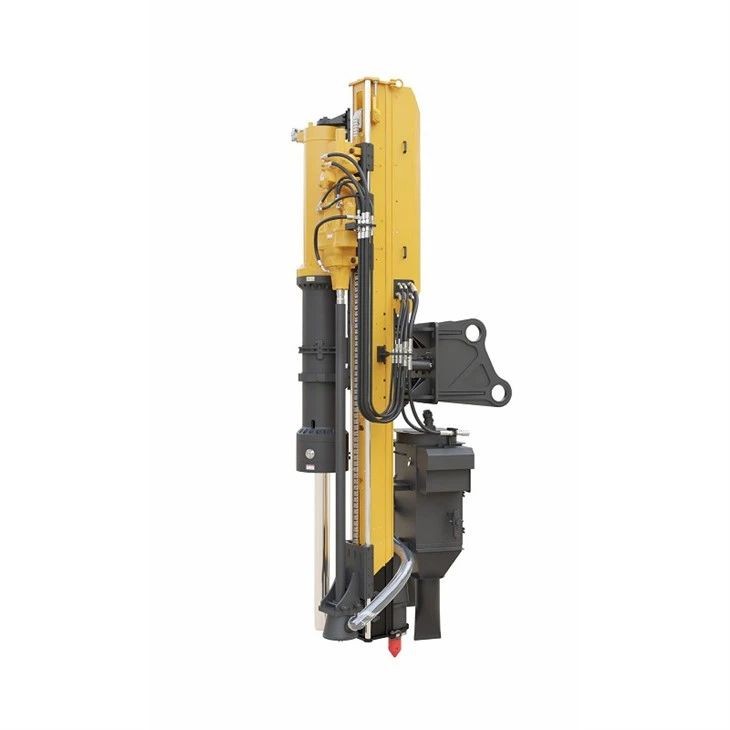

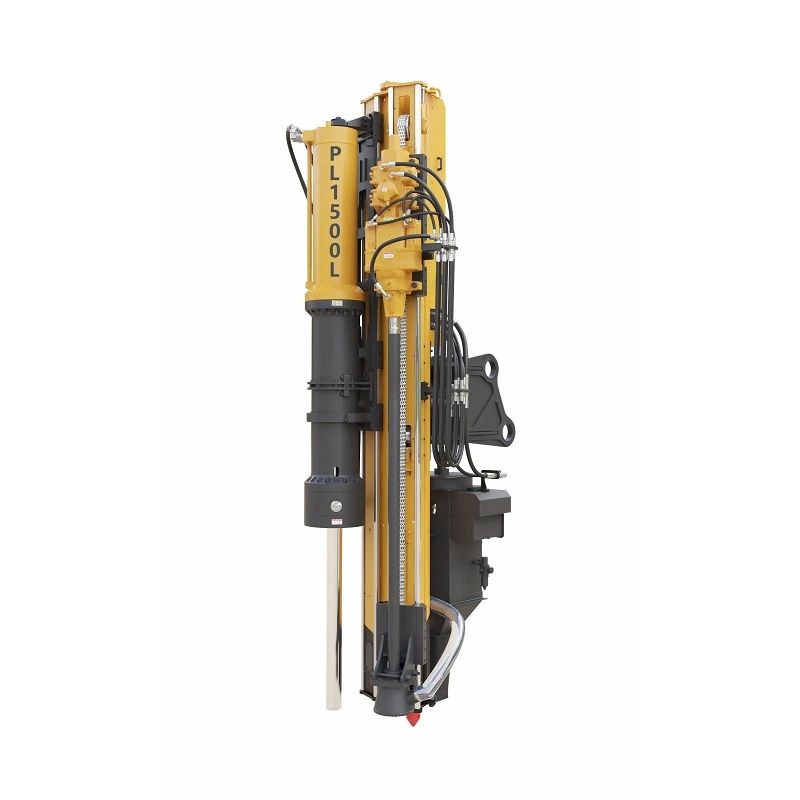

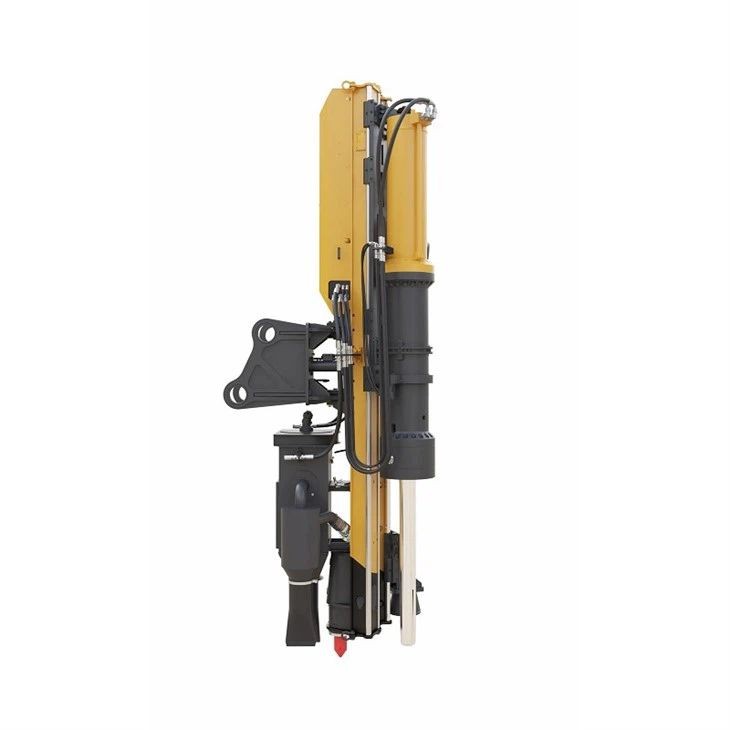

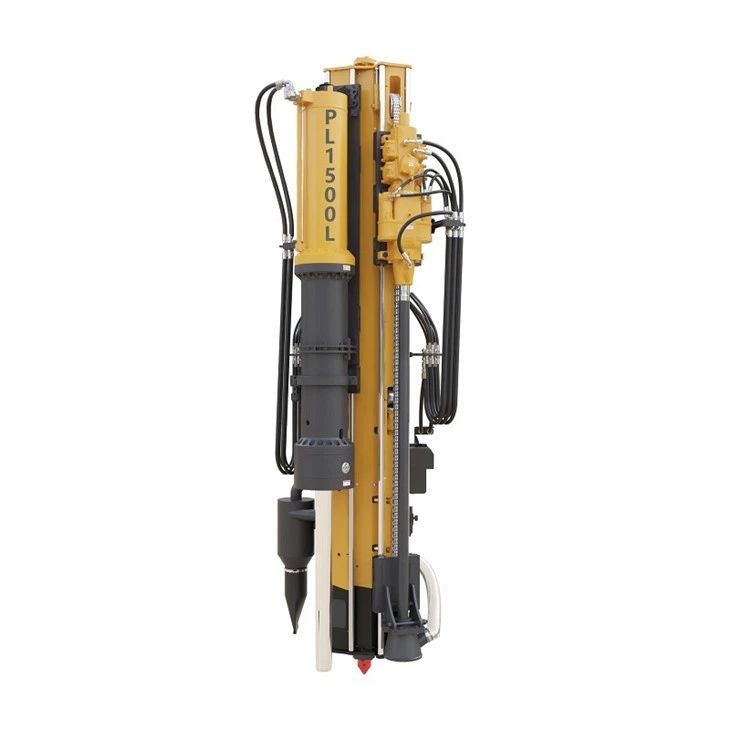

Rock drilling equipment is mounted on (36T-48T) excavators for use in various hard rock square mining projects, to solve the hard rock efficient and environmentally friendly mining program. Make full use of its power and super mobility, can be applied to a variety of outdoor complex working conditions, original L-type triangular swing articulated structure, stable structure, durable, can be adapted to various angles of construction, easy to disassemble and easy to transport, back-mounted circuitry and hydraulic system is convenient for overhaul and maintenance and other features. The equipment is operated by a multi-channel and highly reliable wireless remote control.

Using 30KW hydraulic rock drill, the first rock drilling, and then use the P280 two-stage pressurized super splitter into the hole splitting, so as to achieve the effect of efficient rock static blasting. Its high efficiency hydraulic rock drill fully embodies the high economic drilling costs, hydraulic drive air compressor using excavator hydraulic drive, more stable than the traditional (diesel-driven independent air compressor), lower maintenance costs, better economy. Splitting blocks are made of imported alloy forging material through advanced heat treatment process to make them more durable.

Technical Data of Rock Drilling Equipment

Rock Drill Parameters		Power (output)	30kw
Borehole diameter	Φ135mm	Drilling depth	1900mm
Drilling speed	0.8m/min	Operating noise	In line with GB 19872-2005
Splitter parameters		Splitting depth	1250mm
Splitting force (two-stage pressurization)	15000T	Angle of rotation	120°
Air compressor/vacuum cleaner parameters		Exhaust volume	7.5m³/min
Exhaust pressure	5-8bar	Number of cartridges	8P
Push Beam/Side Swing Parameters		Maximum thrust of rock drilling	40KN
Maximum pull-out force for splitting	80KN	Lateral oscillation force	80KN
Side Swing Velocity	1rpm	Remote Control Parameters
Range of validity	50m	Number of digital points	30
Number of analog channels	14	Anti-interference capability	>50dB
Machine Parameters		Total weight	5T
Overall length	5200mm	Total width	1520mm
Leveling off	1860mm	Excavator requirements	36-48T
