Rock Drilling And Cracking Machine

Adopting a mechanical fuel injection engine that meets the national emission standards, it has strong power, energy conservation, environmental protection, high reliability, and excellent performance. Key hydraulic components adopt the latest technological achievements, with low energy consumption and fast response.

Product Introduction

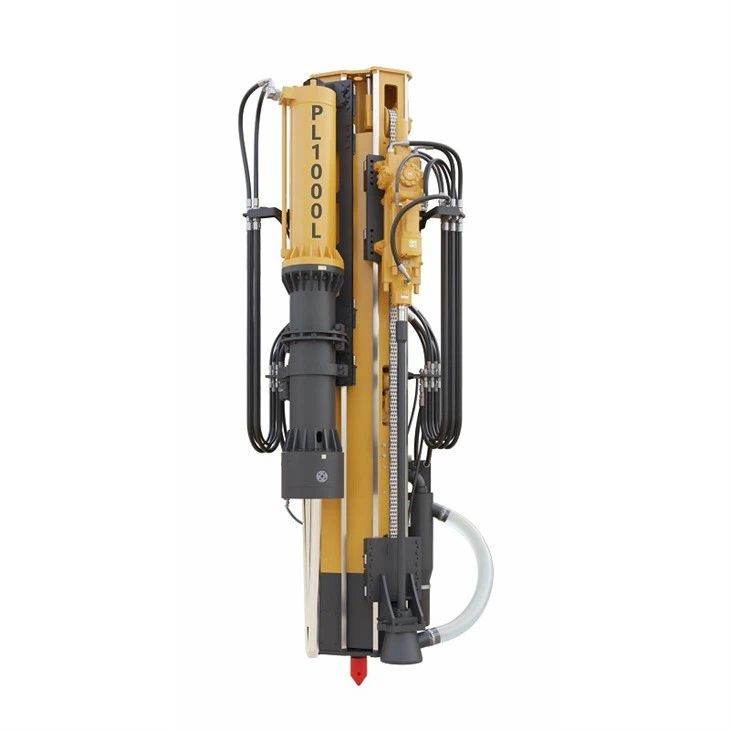

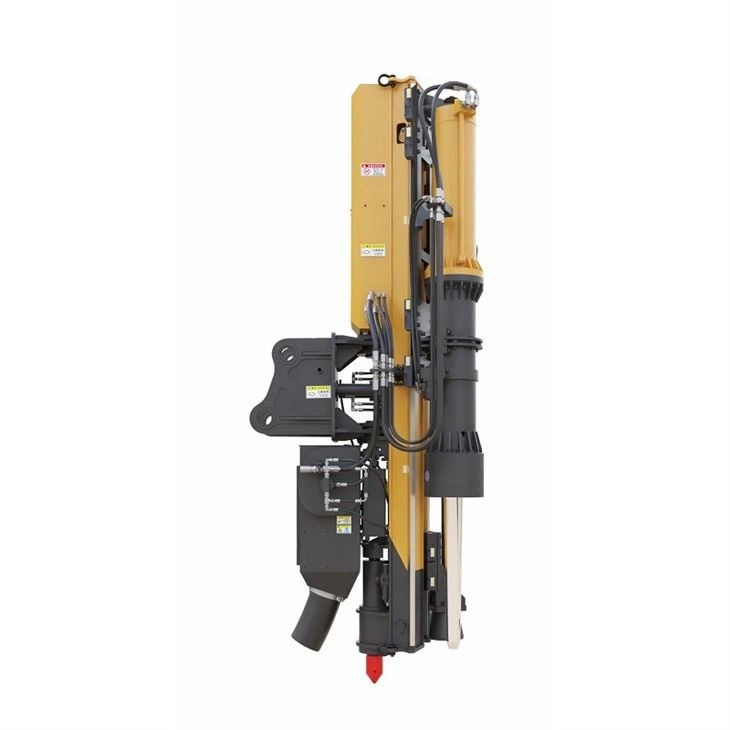

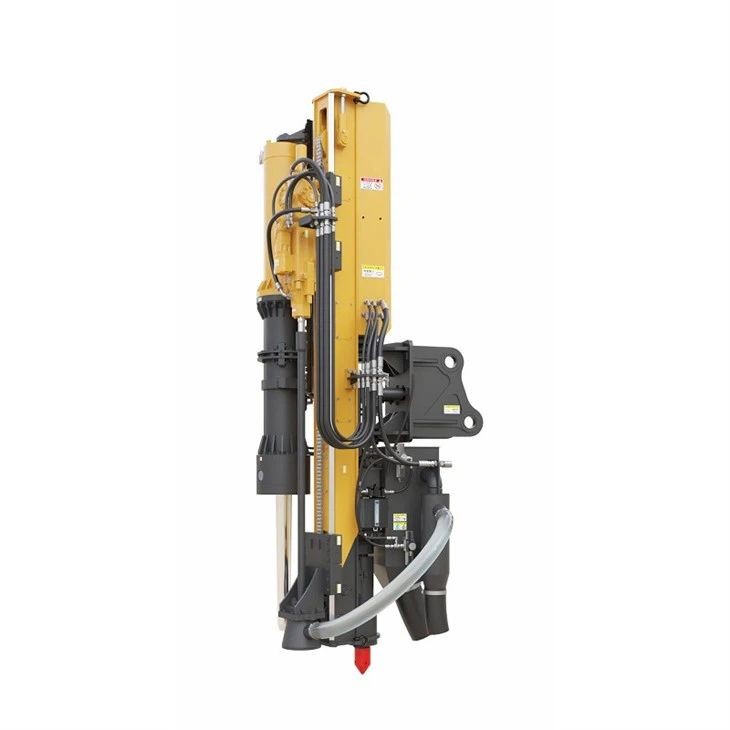

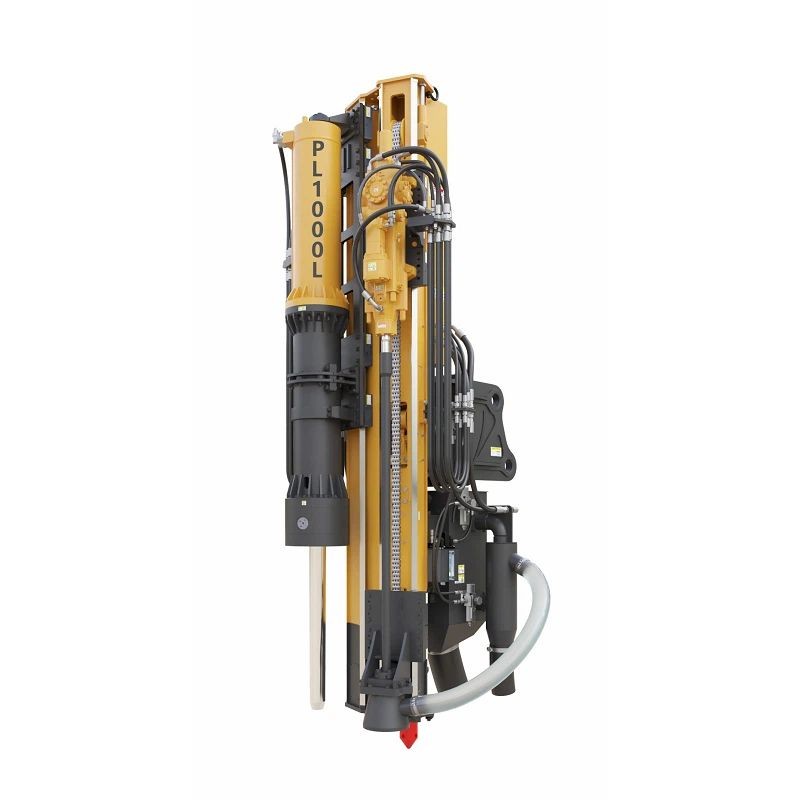

Rock Drilling and Cracking Machine PL1000L is mounted on (24T-36T) excavators for use in a variety of hard rock square mining projects, to solve the hard rock efficient and environmentally friendly mining program. Make full use of its power and super mobility, can be applied to a variety of outdoor complex working conditions, unique L-type triangular swing articulation structure, stable and durable structure, can be adapted to various angles of construction, easy to disassemble and easy to transport, back mounted circuit and hydraulic system for easy maintenance and other features. The equipment is operated by a multi-channel and highly reliable wireless remote control. Utilizing the 22KW hydraulic rock drill, the rock drilling is carried out first, and then the P240 two-stage pressurized super splitter is used to enter the hole to split, so as to achieve the effect of high-efficiency rock static blasting.

Its high-efficiency hydraulic rock drill fully embodies the high economic drilling costs, hydraulic drive air compressor using excavator hydraulic drive, than the traditional (diesel-driven independent air compressor) more stable, lower maintenance costs, better economy. Splitting blocks are made of imported alloy forging material through advanced heat treatment process to make them more durable.

Technical Data of Rock Drilling and Cracking Machine

Rock Drill Parameters		Power (output)	22kw
Borehole diameter	Φ89-127mm	Drilling depth	1600mm
Drilling speed	1m/min	Operating noise	In line with GB 19872-2005
Splitter parameters		Splitting depth	1000mm
Splitting force (two-stage pressurization)	12000T	Angle of rotation	120°
Air compressor/vacuum cleaner parameters		Exhaust volume	4.5m³/min
Exhaust pressure	5-8bar	Number of cartridges	5P
Push Beam/Side Swing Parameters		Maximum thrust of rock drilling	40KN
Maximum pull-out force for splitting	80KN	Lateral oscillation force	80KN
Side Swing Velocity	1rpm	Remote Control Parameters
Range of validity	50m	Number of digital points	30
Number of analog channels	14	Anti-interference capability	>50dB
Machine Parameters		Total weight	4T
Overall length	4140mm	Total width	1500mm
Leveling off	1570mm	Excavator requirements	24-36T
